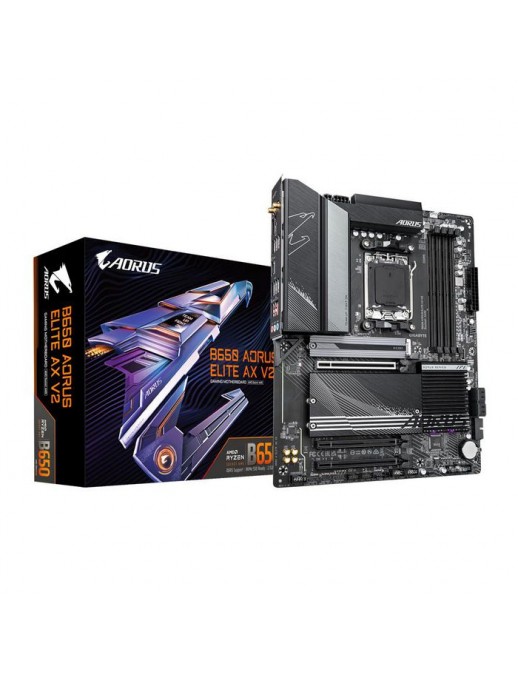

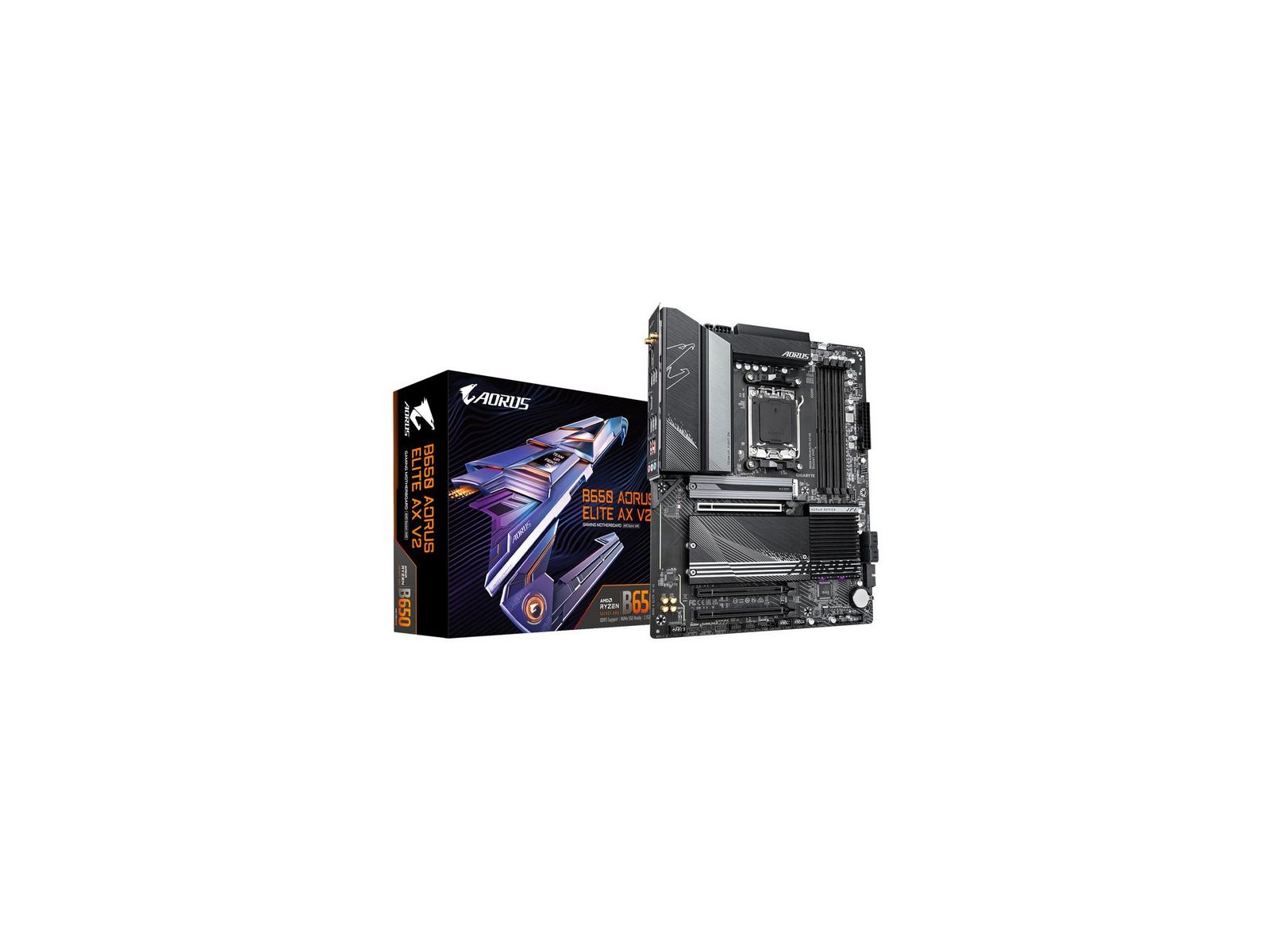

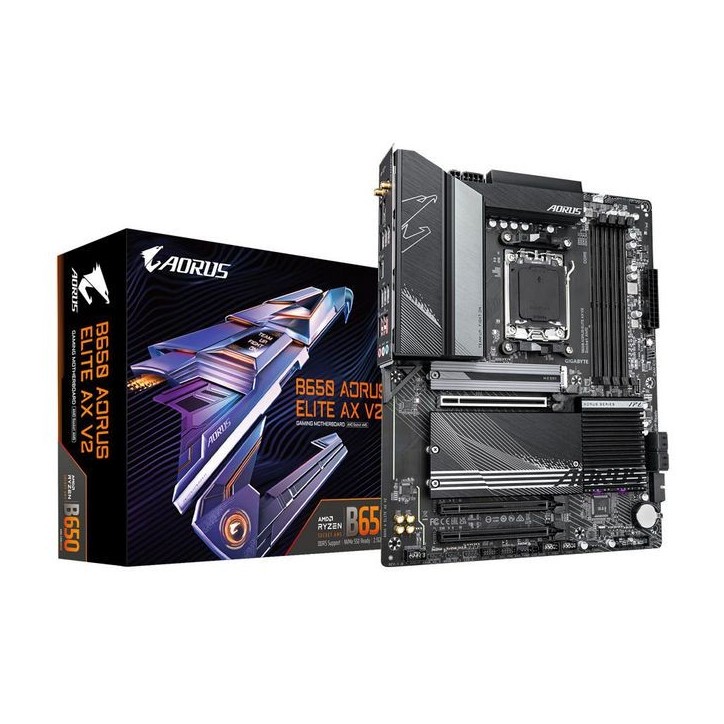

B650 AORUS ELITE AX V2 Gigabyte Motherboard - Supports Amd Am5 Cpus, 12+2+2 Phases Digital Vrm, Up To 8000Mhz Ddr5 (Oc), 1Xpcie









B650 AORUS ELITE AX V2 Gigabyte Motherboard - Supports Amd Am5 Cpus 12+2+2 Phases Digital Vrm Up To 8000Mhz Ddr5 (Oc) 1Xpcie 5.0 + 2Xpcie 4.0 M.2 Wi-Fi 6E 2.5Gbe Lan Usb 3.2 Gen 2









Potenza in numeriTutte le schede madri gaming della serie AORUS sono dotate di un design di alimentazione completamente digitale che garantisce la migliore stabilit? anche sotto carichi di lavoro pesanti.









Battery Battery typeCR2032Battery TypeUN3091 - Lithium METAL inside equimentBattery weight3 gLithium Weight (g)0,064 gLithium weight per battery0,07 gNumber of battery cells1BIOS ACPI version5.0BIOS memory size256 MbitBIOS typeUEFI AMIClear CMOS buttonYesClear CMOS jumperYesDesktop Management Interface (DMI) version2.7System Management BIOS (SMBIOS) version2.7Expansion slots Number of M.2 (M) slots3PCI Express x16 (Gen 3.x) slots2PCI Express x16 (Gen 4.x) slots1Caratteristiche Audio chipRealtek ALC897Audio output channels7.1 canaliComponent forPCMotherboard chipsetAMD B650Motherboard chipset familyAMDMotherboard form factorATXPC health monitoringFan/Noise/Temperature/Voltage/Water coolingProduct colourBlackWindows operating systems supportedWindows 10 x64/Windows 11 x64Graphics DirectX version12.0Discrete graphics supportYesHDCPYesMaximum resolution7680 x 4320 PixelsParallel processing technology supportNot supportedInternal I/O 12V power connectorYesATX Power connector (24-pin)YesCPU fan connectorYesEPS power connector (8-pin)YesFront panel audio connectorYesFront panel connectorYesNumber of EATX power connectors2Number of SATA III connectors4RGB LED pin headerYesTotal number of SATA connectors4TPM connectorYesUSB 2.0 connectors2USB 3.2 Gen 1 (3.1 Gen 1) connectors1USB 3.2 Gen 2x2 connectors1Legal Information UNSPSC Code (Icecat)43201513Logistics data Products per shipping (inner) case1 pzMemory ECC ?ompatibilityNon-ECCMaximum internal memory192 GBMemory channelsDual-channelMemory slots typeDIMMNon-ECCYesNumber of memory slots4Supported memory clock speeds4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000 MHzSupported memory module capacities12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GBSupported memory typesDDR5-SDRAMUnbuffered memoryYesNetwork BluetoothYesBluetooth version5.3Ethernet interface type2.5 Gigabit EthernetEthernet LANYesLAN controllerRealtek RTL8125Top Wi-Fi standardWi-Fi 6E (802.11ax)Wi-FiYesWi-Fi standards802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)WLAN controller modelRealtek RTL8852CEPackage dimensions Depth (package,cm)27 cmGross Weight (Package kg)1,3 kgHeight (package,cm)8 cmWidth (package,cm)33,5 cmPackaging content Antenna includedYesBatteries includedYesBundled softwareLAN bandwidth management software/Norton? Internet Security (OEM version)Cables includedSATAProcessor Compatible processor seriesAMD Ryzen? 7Maximum internal memory supported by processor192 GBMaximum number of SMP processors1Processor manufacturerAMDProcessor socketSocket AM5Supported processor socketsSocket AM5Product dimensions Net Weight (Product kg)1 kgProduct Depth24,4 cmProduct Height3,5 cmProduct Width30,5 cmRear panel I/O ports Digital audio optical out1Ethernet LAN (RJ-45) ports1HDMI ports quantity1HDMI version2.1Headphone outputs1Microphone inYesS/PDIF out portYesUSB 2.0 ports quantity4USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1USB connector typeUSB Type-A/USB Type-CWiFi-AP antenna jack2Storage controllers Number of HDDs supported4Number of storage drives supported7RAID levels0/1/10RAID supportYesSupported storage drive interfacesM.2/SATA IIISupported storage drive typesHDD & SSDTechnical details * period3 anno/i^ Brand NameGigabyte*1 Anno(i)Categorie Categoria principaleParti per Server Computer e StampantiSottocategoriaServer & ComputerSottocategoriaComponenti di sistemaSottocategoriaSchede madre
