IGS-504HPT Planet Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 10/100/1000T Gigabit Ethernet Switch FCC, CE

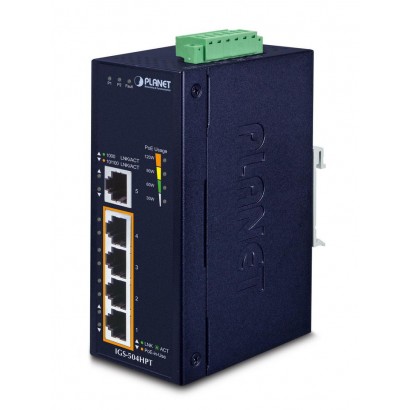

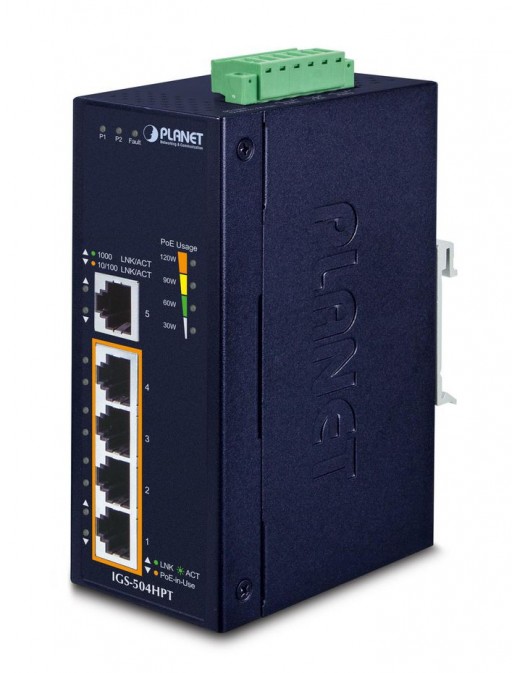

IGS-504HPT Planet Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 10/100/1000T Gigabit Ethernet Switch FCC, CE Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 10/100/1000T Gigabit Ethernet SwitchCost-effective Full PoE+ Power Solution Ideal for Hardened EnvironmentFeaturing Plug and Play designed to be installed in heavy industrial demanding environments, the IGS-504HPT is a PLANET Industrial-grade, DIN-rail type Unmanaged Gigabit Ethernet PoE+ Switch with four 10/100/1000BASE-T ports featuring IEEE 802.3at PoE+ and one extra 10/100/1000BASE-T RJ45 copper interface for uplink connection.The special and convenient power system of the IGS-504HPT supports 12~56V DC power input for power redundancy and operational flexibility. It comes with a total power budget of up to 120 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP40 metal housing.Convenient and Reliable Power SystemTo facilitate the 802.3at PoE+ usage with commonly used 12~48V DC power input for transportation and industrial-level applications, the IGS-504HPT adopts power boost technology to solve power source issue but does not require special power supplies. The IGS-504HPT provides an integrated power solution with a wide range of voltages (12~56V DC) for worldwide operability. It also provides dual-redundant, reversible polarity power supply inputs for high availability applications.Plug and Play High Power Sourcing SolutionComplying with the IEEE 802.3at Power over Ethernet Plus technology, the IGS-504HPT provides up to 36 watts of PoE output power to allow users to flexibly deploy standard and high powered devices simultaneously with no need of software configuration. Furthermore, the IGS-504HPT can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD devices which can be installed over more than 100 meters away. By daisy-chaining multiple PoE extenders, it offers the great flexibility of doubling, tripling or quadrupling the distance of PoE network.Intelligent LED Indicator for Real-time PoE UsageThe IGS-504HPT helps users to monitor current status of PoE power usage easily and efficiently by its advanced LED indication. Called “PoE Power Usage”, the front panel of the Industrial Gigabit PoE+ Switch has four orange LEDs indicating 30W, 60W, 90W and 120W of PoE power usage.Environmentally Hardened DesignWith the IP40 metal industrial case, the IGS-504HPT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-504HPT can be placed in almost any difficult environment.Robust ProtectionTheIGS-504HPT provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.Flexible and Easy Installation with Limited SpaceThe compact sized IGS-504HPT is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexibly and easily in any space-limited location.
