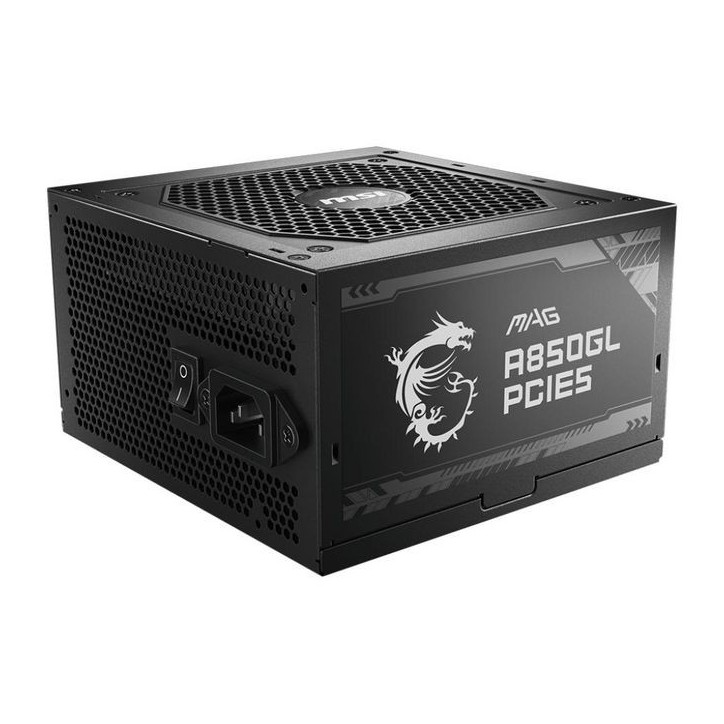

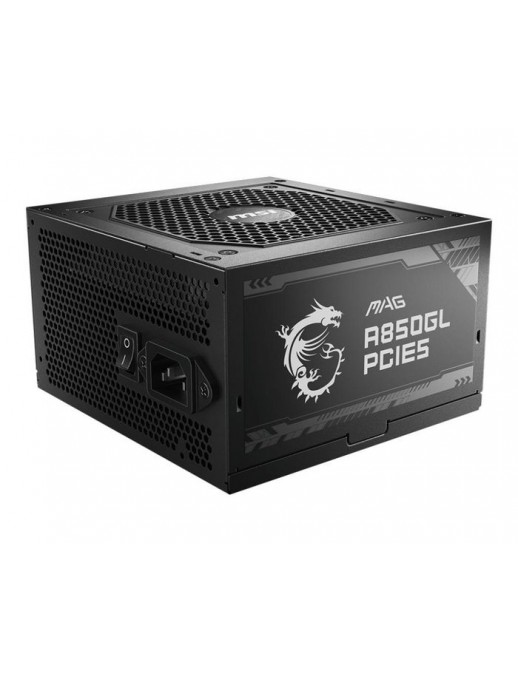

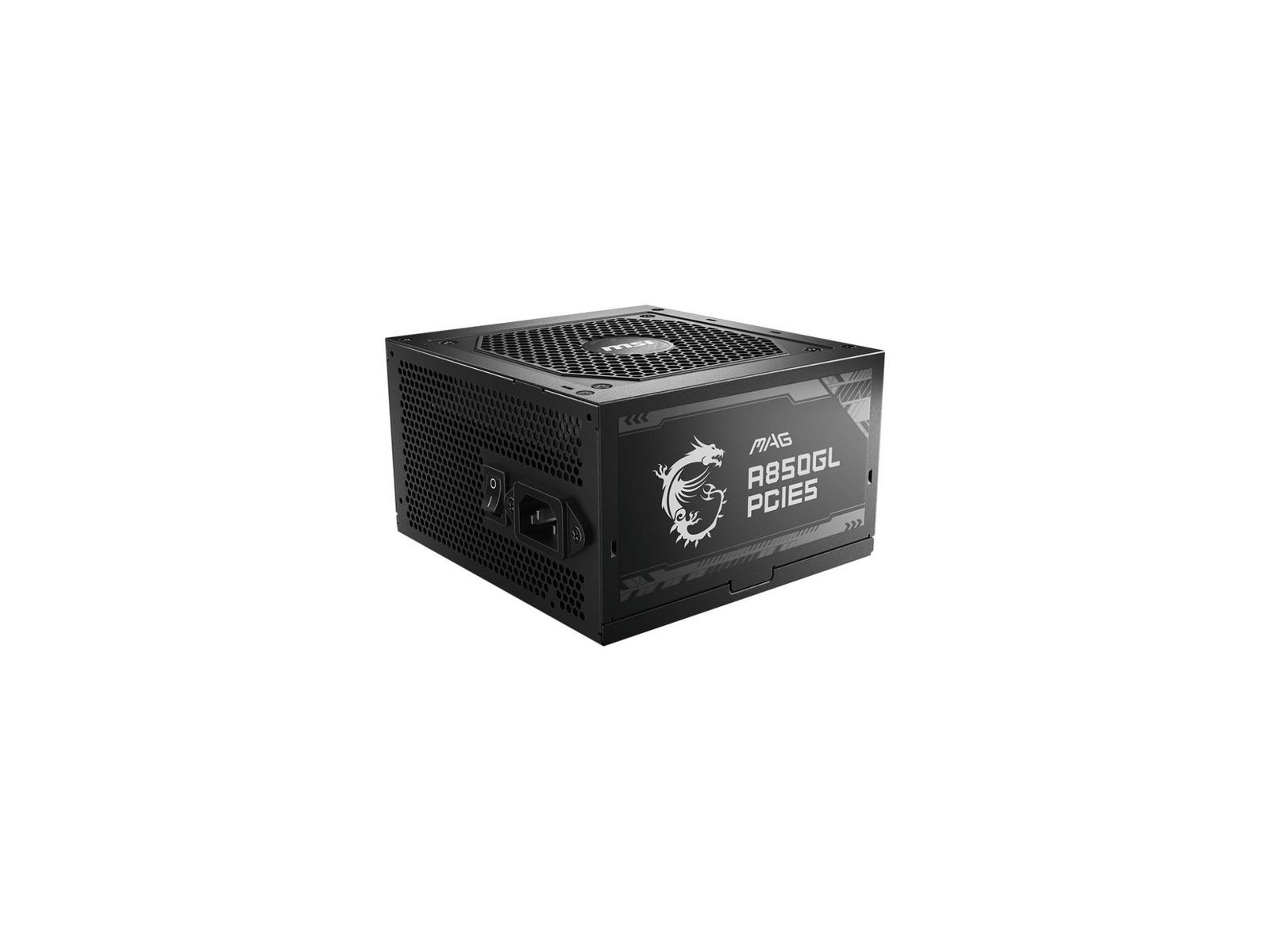

MAGA850GLPCIE5 MSI Mag A850Gl Pcie5 Power Supply Unit 850 W 20+4 Pin Atx Atx Black









MAGA850GLPCIE5 MSI Mag A850Gl Pcie5 Power Supply Unit 850 W 20+4 Pin Atx Atx Black

















Battery Battery Type NONE - Only use for non-battery items Design Cooling type Active Fan diameter 12 cm Illumination No Number of fans 1 ventola(e) On/off switch Yes Product colour Black Legal Information UNSPSC Code (Icecat) 39121004 Logistics data Harmonized System (HS) code 84733020 Package dimensions Gross Weight (Package kg) 0,65 kg Performance 80 PLUS certification 80 PLUS Gold Power supply unit (PSU) form factor ATX Purpose PC Ports & interfaces ATX power connector (20+4 pin) No ATX Power connector (24-pin) No Cabling type Fully-Modular CPU power connector (4+4 pin) Yes EPS power connector (4+4 pin) Yes EPS power connector (8-pin) No Motherboard power cable length 60 cm Motherboard power connector 20+4 pin ATX Number of SATA power connectors 8 PCI Express power connectors (6+2 pin) 4 Peripheral (Molex) power connectors (4-pin) 4 Power AC input frequency 47 - 63 Hz AC input voltage 100 - 240 V Combined power (-12V) 3,6 Watt Combined power (+12V) 846 Watt Combined power (+3.3V) 110 Watt Combined power (+5V) 110 Watt Combined power (+5Vsb) 12,5 Watt Efficiency 90 % Max output current (-12V) 0,3 A Max output current (+12V) 70,5 A Max output current (+3.3V) 20 A Max output current (+5V) 20 A Max output current (+5Vsb) 2,5 A Maximum input current (@110V) 8 A Maximum input current (@220V) 4 A Power Factor Correction (PFC) type Active Power protection Caratteristiche Over current/Over power/Over voltage/Overheating/Short circuit Total power 850 Watt Product dimensions Net Weight (Product kg) 0,5 kg Product Depth 14 cm Product Height 8,6 cm Product Width 15 cm ^ Brand Name MSI * 1 Anno(i) Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria Componenti di sistema Sottocategoria Alimentatori
