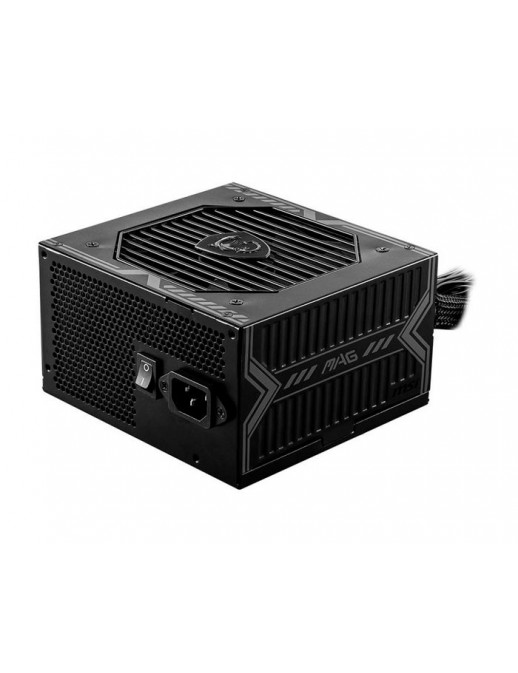

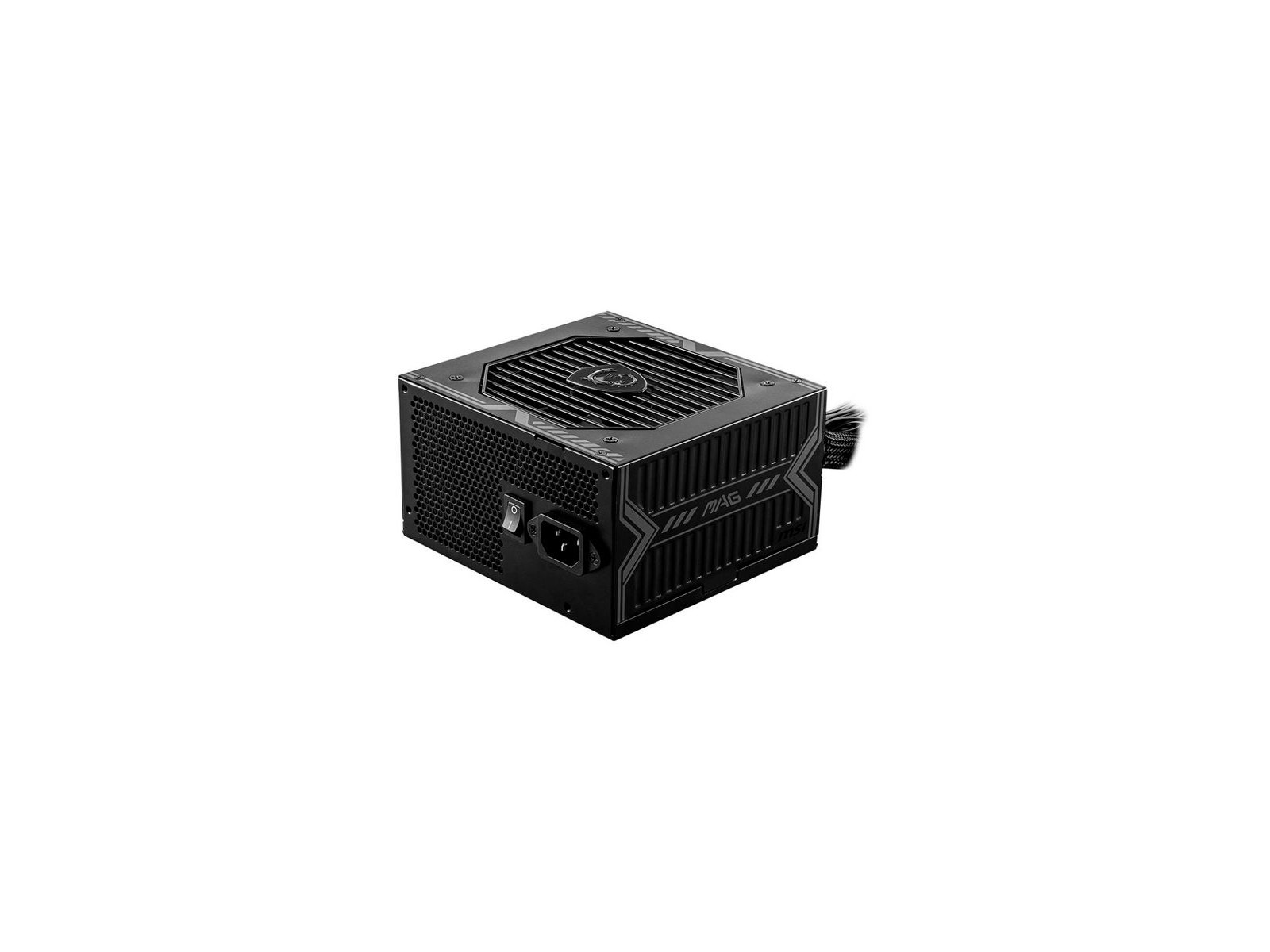

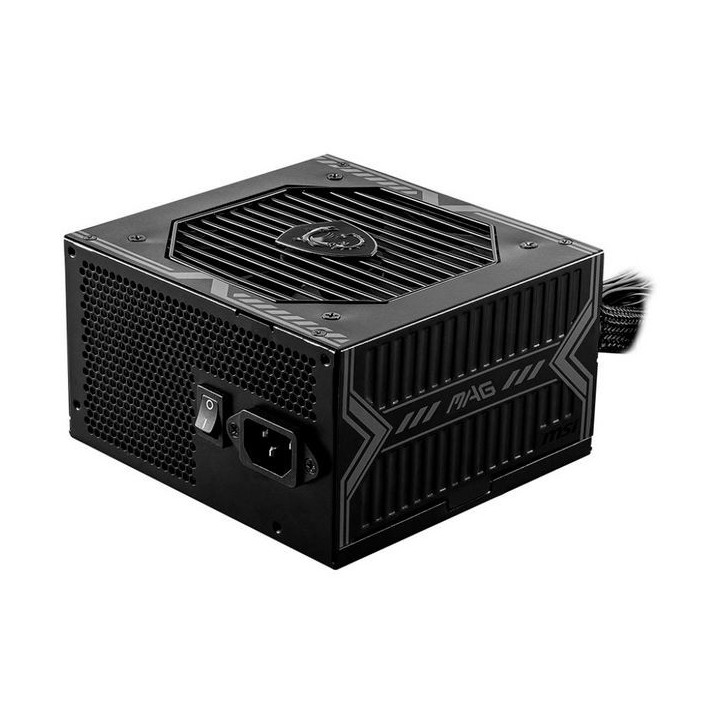

MAG A750BN PCIE5 MSI Power Supply Unit 750 W 24-Pin Atx Atx Black









MAG A750BN PCIE5 MSI Power Supply Unit 750 W 24-Pin Atx Atx Black

















Battery Battery Type NONE - Only use for non-battery items Design Cooling type Active Fan diameter 12 cm Illumination No Number of fans 1 ventola(e) On/off switch Yes Product colour Black Legal Information UNSPSC Code (Icecat) 39121004 Package dimensions Depth (package,cm) 14 cm Gross Weight (Package kg) 0,65 kg Height (package,cm) 8,6 cm Width (package,cm) 15 cm Performance 80 PLUS certification 80 PLUS Bronze Power supply unit (PSU) form factor ATX Purpose PC Ports & interfaces ATX Power connector (24-pin) Yes Cabling type Non-Modular EPS power connector (4+4 pin) Yes Floppy drive power connector 1 Motherboard power connector 24-pin ATX Number of SATA power connectors 5 PCI Express power connectors (16-pin) 1 PCI Express power connectors (6+2 pin) 2 Peripheral (Molex) power connectors (4-pin) 2 Power AC input frequency 50/60 Hz AC input voltage 100 - 240 V Combined power (-12V) 3,6 Watt Combined power (+12V) 750 Watt Combined power (+3.3V) 120 Watt Combined power (+5V) 120 Watt Combined power (+5Vsb) 12,5 Watt Efficiency 85 % Max output current (-12V) 0,3 A Max output current (+12V) 62,5 A Max output current (+3.3V) 20 A Max output current (+5V) 20 A Max output current (+5Vsb) 2,5 A Maximum input current (@110V) 10 A Maximum input current (@220V) 5 A Power Factor Correction (PFC) type Active Power protection Caratteristiche Over current/Over power/Over voltage/Short circuit Total power 750 Watt Product dimensions Net Weight (Product kg) 0,5 kg ^ Brand Name MSI * 1 Anno(i) Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria Componenti di sistema Sottocategoria Alimentatori
