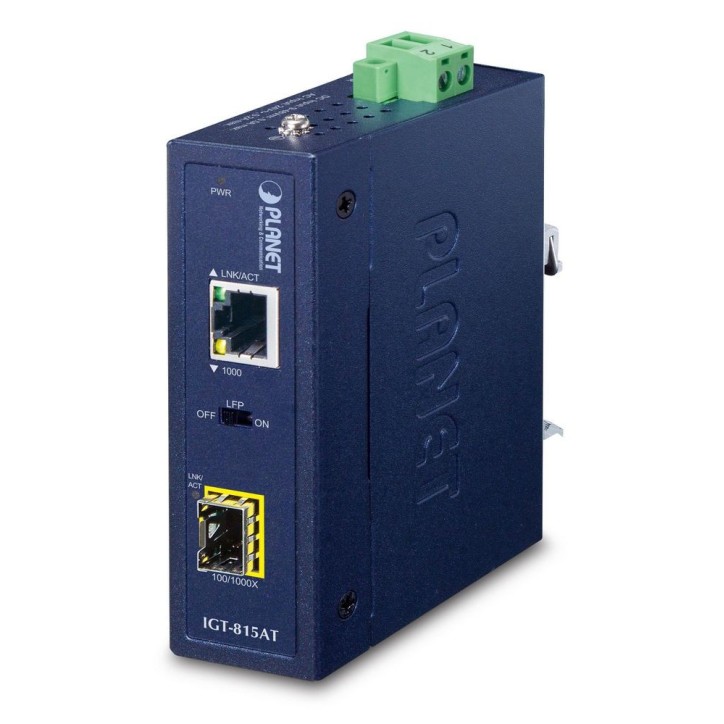

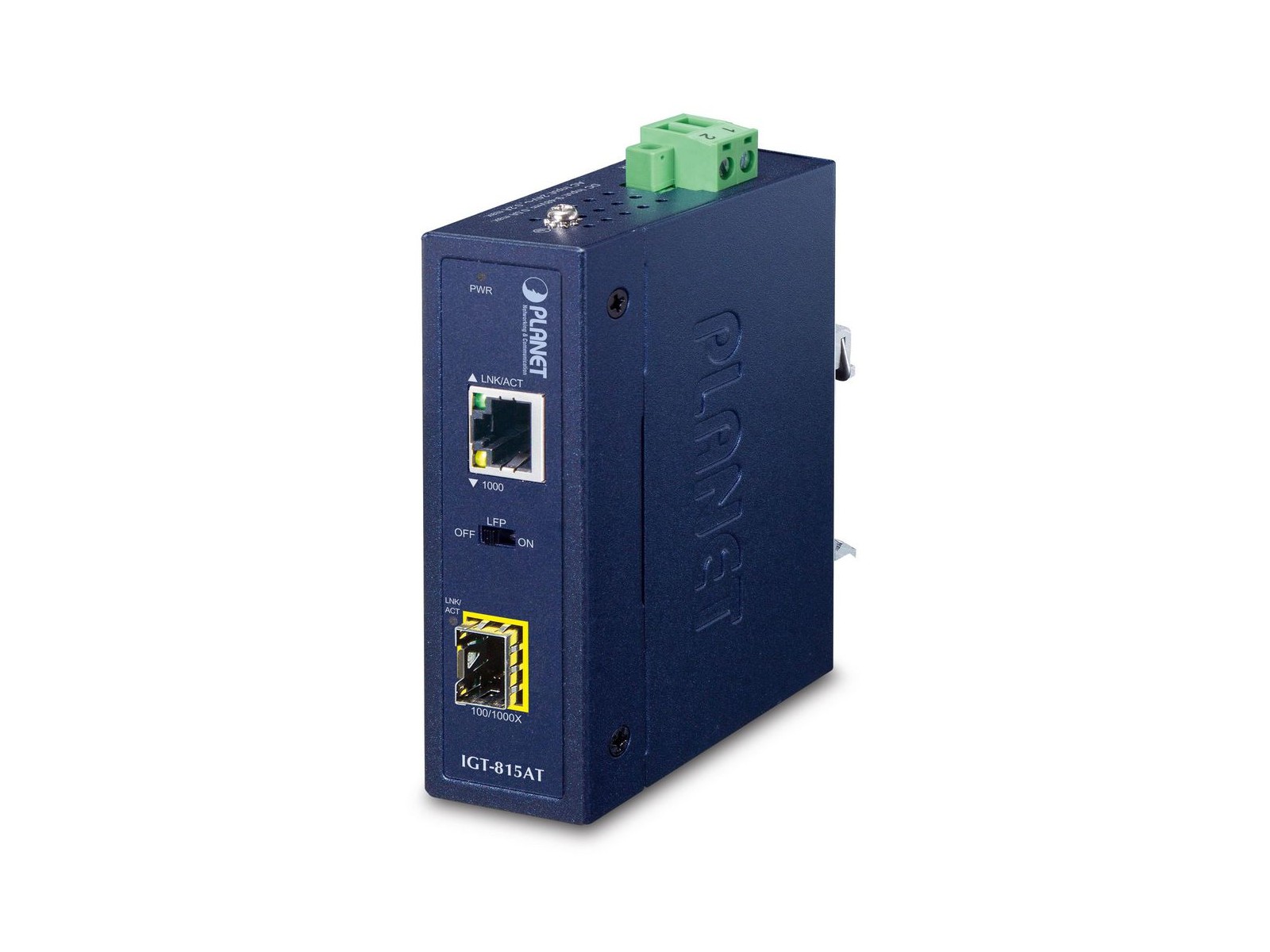

IGT-815AT Planet Industrial Compact 100/1000BASE-X to 10/100/1000BASE-T Media Converter FCC Part 15 Class A, CE Industrial Compact 100/1000BASE-X to 10/100/1000BASE-T Media Converter Compact Size for More Practicability and Convenience PLANET IGT-815AT is an Industrial-grade Gigabit Media Converter, featuring one 100/1000BASE-X SFP fiber port and one 10/100/1000BASE-T copper port in an IP30-rated rugged but compact-size case. Being able to operate under the temperature ranging from -40 to 75 degrees C, the IGT-815AT provides reliable, stable and continuous long-range data transmission, and can be installed in any harsh environment without taking space into consideration. As the trend for an IIoT (Industrial Internet of Things) infrastructure is gradually in demand, the IGT-815AT is especially designed to make the deployment of an industrial network easy as it comes with a Plug and Play feature. Besides, it is stable and reliable when it comes to fast data transmission. Fiber-optic Link Capability Extends the Range of Network Deployment The maximum distance between two IP devices via Ethernet UTP cable is 100 meters. To flexibly extend the deployment range of IP devices, the IGT-815AT’s SFP slot supporting 100BASE-FX/1000BASE-X, SFP modules, and more can reach a transmission distance of up to 120km. Interactive Network Detection The IGT-815AT can support LFP (Link Fault Passthrough) function via its built-in DIP switch. The LFP function includes Link Loss Carry Forward (LLCF) and Link Loss Return (LLR): -　LLCF means when a device is connected to the converter and the TP line loses the link, the converter’s fiber port will disconnect the link of transmission. -　LLR means when a device is connected to the converter and the fiber line loses the link, the converter’s fiber port will disconnect the link of transmission. The administrator will be immediately alerted about the above two issues and the solutions can be solved by closely monitoring the network without having to go the actual site. Environmentally Hardened Design The IGT-815AT is specifically designed with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments like plant floors or curbside traffic control cabinets. With wide operating temperature range of -40 to 75 degrees C, the IGT-815AT is ideal for service providers, campuses and public areas to deploy outdoor wireless access points, outdoor IP cameras or IP phones in any places easily and efficiently. Robust Protection The IGT-815AT provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate. Flexible and Easy Installation with Limited Space The compact-sized IGT-815AT is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexible and easier in any space-limited location. Wide Range of Power Usages The IGT-815AT supports a wide range of voltages for worldwide operation. It also offers a reverse polarity input of 9V DC to 48V DC for high availability applications.
