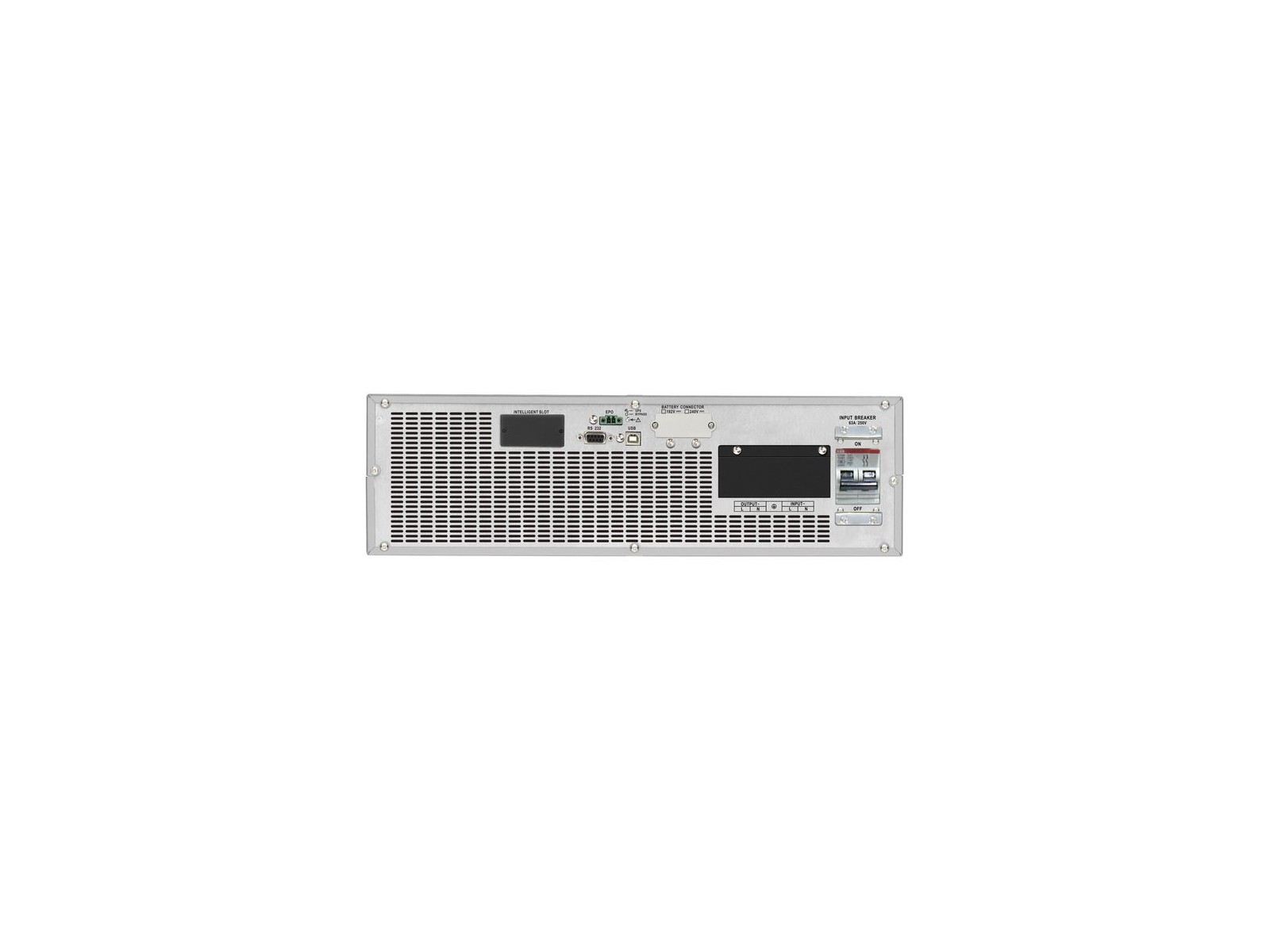

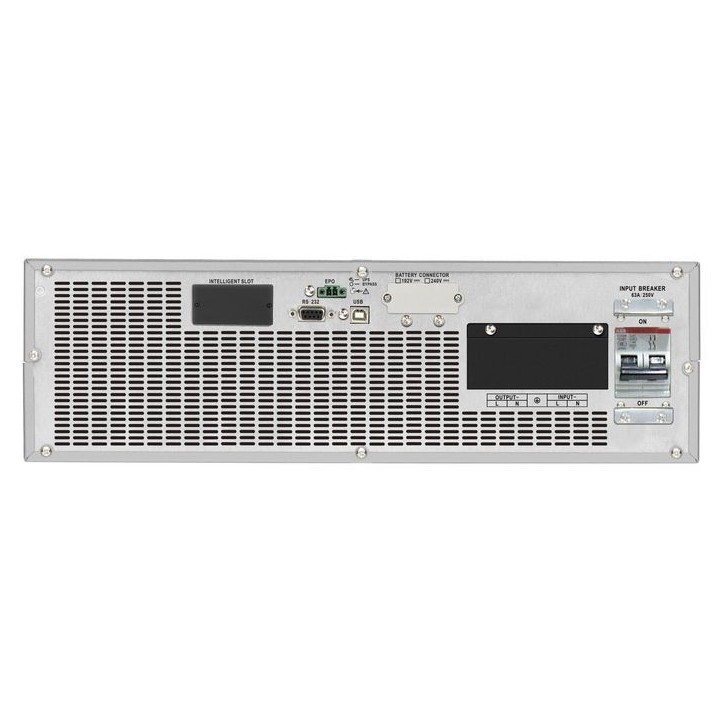

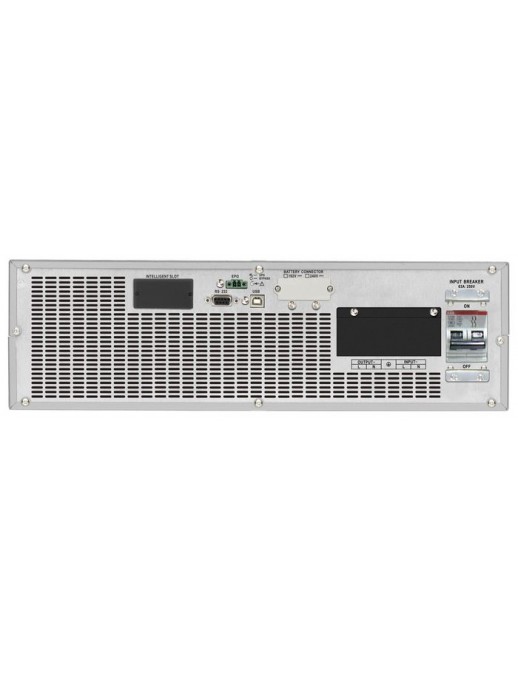

67321 Infosec On Line Double Conversion UPS 10k VA - Terminal block -- 2-year warranty -- TUPSE3PRO10000









67321 Infosec On Line Double Conversion UPS 10k VA - Terminal block -- 2-year warranty -- TUPSE3PRO10000









UPS On Line Double Conversion 10k VA - Morsettiera -- Garanzia 2 anni -- Gli UPS E3 Pro sono realizzati per la protezione elettrica di reti e dispositivi critici. Sono disponibili in 2 versioni: E3 Pro RM (UPS rack-mount 1U) ed E3 Pro RT (UPS rack 2U e 3U)









Battery Battery recharge time 9 Hour Battery Type UN2800 - Batteries wet non-spillable electric storage Charging current 6 A Cold start Yes Typical backup time at full load 30 min Design Certification CE Display type LCD Form factor Rackmount Product colour Black Rack capacity 3U Caratteristiche Audible alarm modes Alarm when on battery/Fault/Low battery alarm/Overload alarm Audible alarm(s) Yes Auto-restart Yes Automatic Voltage Regulation (AVR) Yes Crest factor 3:1 Efficiency 93 % Emergency Power Off (EPO) Yes Input frequency 46/64 Hz Input operation voltage (max) 300 V Input operation voltage (min) 110 V Noise level 58 dB Output frequency 46/64 Hz Output operation voltage (max) 240 V Output operation voltage (min) 208 V Output power 9000 Watt Output power capacity 10 kVA Output voltage regulation -1 - 1 % Output voltage Total Harmonic Distortion (THD) 5 % Power factor 0,9 Power protection Caratteristiche Overcharge/Overdischarge/Overload UPS topology Double-conversion (Online) Waveform Pure sine Legal Information UNSPSC Code (Icecat) 39121011 Operational conditions Operating altitude 0 - 1000 m Operating relative humidity (H-H) 0 - 95 % Operating temperature (T-T) 0 - 40 ?C Package dimensions Gross Weight (Package kg) 85,6 kg Packaging data Cables included USB cable Manual Yes Rack mount kit Yes Ports & interfaces AC outlet types Terminal Emergency Power Off (EPO) connector Yes Serial interface Yes Serial interface type RS-232 Serial ports quantity 1 SmartSlot Yes USB 2.0 ports quantity 1 USB port Yes USB port type USB Type-B Product dimensions Net Weight (Product kg) 18 kg Product Depth 60,5 cm Product Height 13,3 cm Product Width 43,8 cm Technical details Compliance certificates RoHS Sustainability certificates RoHS ^ Brand Name Infosec * 2 Anno(i) Weight & dimensions Battery depth 63 cm Battery height 13,3 cm Battery weight 63 kg Battery width 43,8 cm Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria UPS e accessori Sottocategoria UPS
