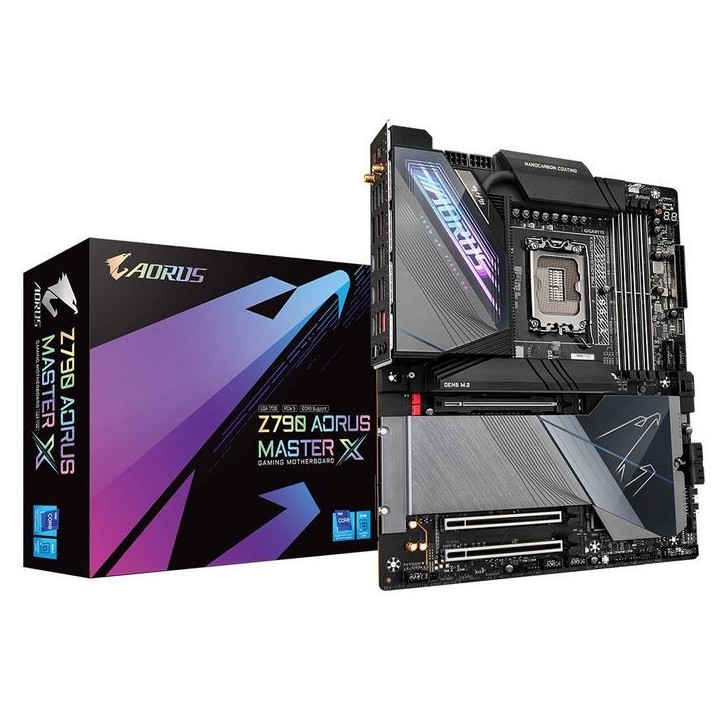

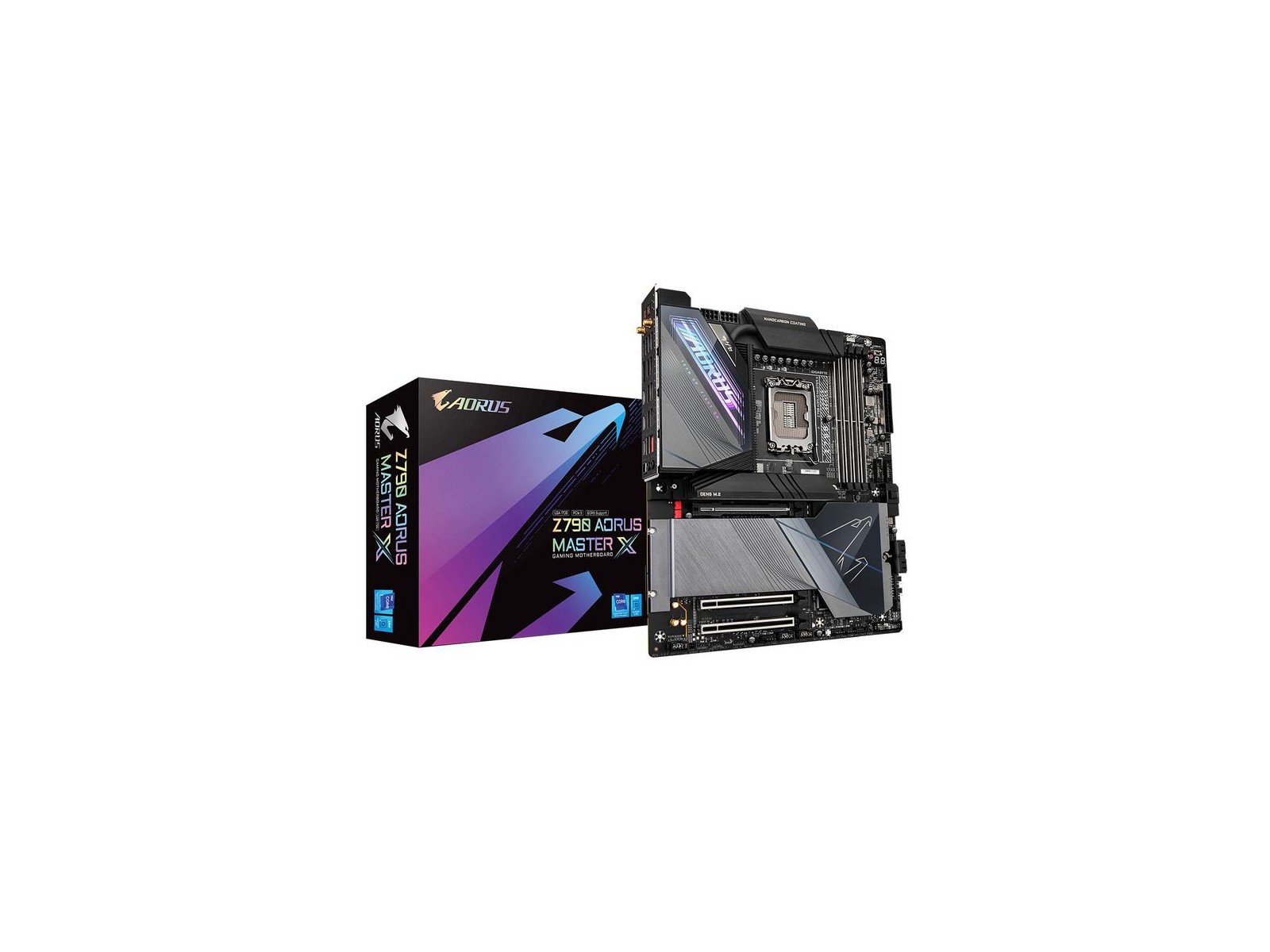

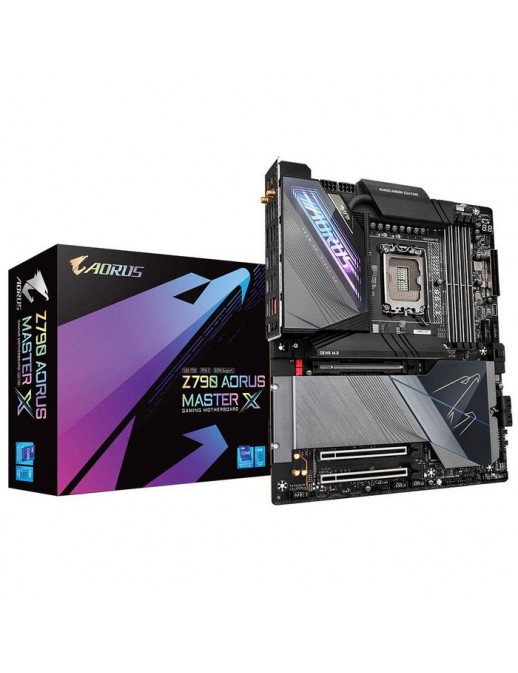

Z790 AORUS MASTER X Gigabyte Motherboard- Supports Intel 13Th Gen Cpus, 20+1+2 Phases Vrm, Up To 8266Mhz Ddr5 (Oc), 1X Pcie 5.0









Z790 AORUS MASTER X Gigabyte Motherboard- Supports Intel 13Th Gen Cpus 20+1+2 Phases Vrm Up To 8266Mhz Ddr5 (Oc) 1X Pcie 5.0 + 4X Pcie 4.0 M2 10Gbe Lan Wi-Fi 7 Usb 3.2 Gen 2X2









Presentazione della scheda madre GIGABYTE Z790 AORUS MASTER X progettata meticolosamente per il gaming e la creazione di contenuti. La scheda madre supporta i processori Intel Core di 13a generazione e di nuova generazione con socket LGA 1700. Offre un design VRM avanzato gestione termica efficiente supporto PCIe 5.0 compatibilit? DDR5 senza soluzione di continuit? e funzionalit? EZ-latch per installazioni senza viti. Con la sua tecnologia all'avanguardia e il design intuitivo la Z790 AORUS MASTER X stabilisce nuovi standard per l'elaborazione ad alte prestazioni garantendo prestazioni ottimali e facile manutenzione per gli appassionati di PC.









Battery Battery type CR2032 Battery Type UN3091 - Lithium METAL inside equiment Battery weight 3 g Lithium Weight (g) 0,064 g Lithium weight per battery 0,07 g Number of battery cells 1 BIOS ACPI version 5.0 BIOS memory size 256 Mbit BIOS type UEFI AMI Clear CMOS button Yes Clear CMOS jumper Yes Desktop Management Interface (DMI) version 2.7 System Management BIOS (SMBIOS) version 2.7 Expansion slots Number of M.2 (M) slots 5 PCI Express x16 (Gen 3.x) slots 2 PCI Express x16 (Gen 5.x) slots 1 Caratteristiche Audio chip Realtek ALC1220-VB Audio output channels 7.1 canali Component for PC Motherboard chipset Intel Z790 Express Motherboard chipset family Intel Motherboard form factor Extended ATX PC health monitoring Fan/Noise/Temperature/Voltage/Water cooling Product colour Black Windows operating systems supported Windows 11 x64 Graphics DirectX version 12.0 Discrete graphics support Yes HDCP Yes Maximum resolution 4096 x 2304 Pixels Parallel processing technology support Not supported Internal I/O 12V power connector Yes ATX Power connector (24-pin) Yes CPU fan connector Yes EPS power connector (8-pin) Yes Front panel audio connector Yes Front panel connector Yes Number of chassis fan connectors 8 Number of SATA III connectors 4 RGB LED pin header Yes Thunderbolt headers 2 TPM connector Yes USB 2.0 connectors 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors 2 USB 3.2 Gen 2 (3.1 Gen 2) connectors 1 Legal Information UNSPSC Code (Icecat) 43201513 Logistics data Products per shipping (inner) case 1 pz Memory ECC Yes ECC ?ompatibility ECC & Non-ECC Maximum internal memory 192 GB Memory channels Dual-channel Memory slots type DIMM Non-ECC Yes Number of memory slots 4 Supported memory clock speed (max) 8266 MHz Supported memory clock speeds 4000/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266 MHz Supported memory types DDR5-SDRAM Unbuffered memory Yes Network Bluetooth Yes Bluetooth version 5.3 Ethernet interface type 10 Gigabit Ethernet Ethernet LAN Yes LAN controller Marvell AQtion AQC113C Top Wi-Fi standard Wi-Fi 7 (802.11be) Wi-Fi Yes Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 7 (802.11be) Package dimensions Depth (package,cm) 29,4 cm Gross Weight (Package kg) 1,3 kg Height (package,cm) 8 cm Width (package,cm) 34,5 cm Packaging content Antenna included Yes Batteries included Yes Bundled software LAN bandwidth management software/Norton? Internet Security (OEM version) Cables included SATA Processor Compatible processor series Intel? Celeron?/Intel? Core? i3/Intel? Core? i5/Intel? Core? i7/Intel? Core? i9/Intel? Pentium? Gold Maximum internal memory supported by processor 192 GB Maximum number of SMP processors 1 Processor manufacturer Intel Processor socket LGA 1700 Supported processor sockets LGA 1700 Product dimensions Net Weight (Product kg) 1 kg Product Depth 26 cm Product Height 3,5 cm Product Width 30,5 cm Rear panel I/O ports Digital audio optical out 1 DisplayPort version 1.2 DisplayPorts quantity 1 Ethernet LAN (RJ-45) ports 1 Headphone outputs 1 Microphone in Yes S/PDIF out port Yes USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 7 USB 3.2 Gen 2x2 Type-C ports quantity 2 USB connector type USB Type-A/USB Type-C WiFi-AP antenna jack 2 Storage controllers Number of HDDs supported 4 Number of storage drives supported 9 RAID levels 0/1/10/5 RAID support Yes Supported storage drive interfaces M.2/SATA III Supported storage drive types HDD & SSD Technical details * period 3 anno/i ^ Brand Name Gigabyte * 1 Anno(i) Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria Componenti di sistema Sottocategoria Schede madre
