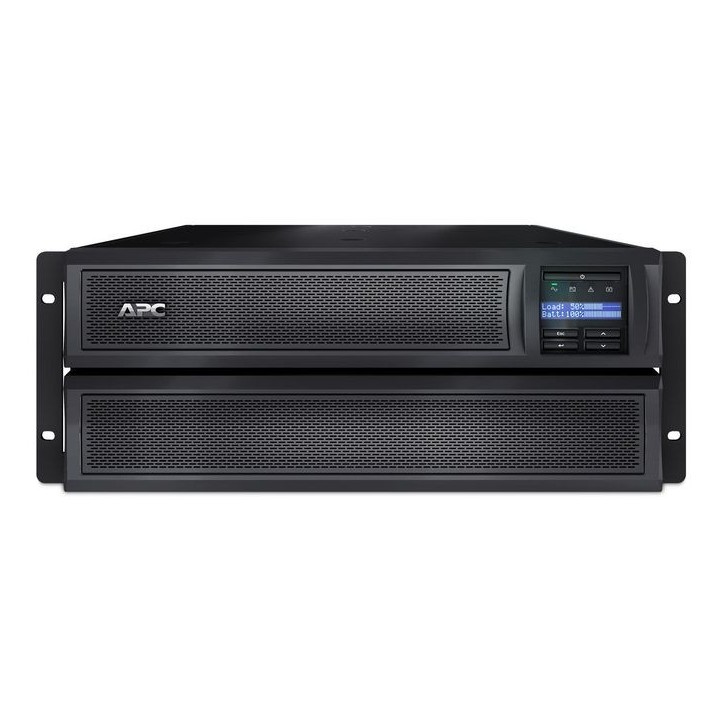

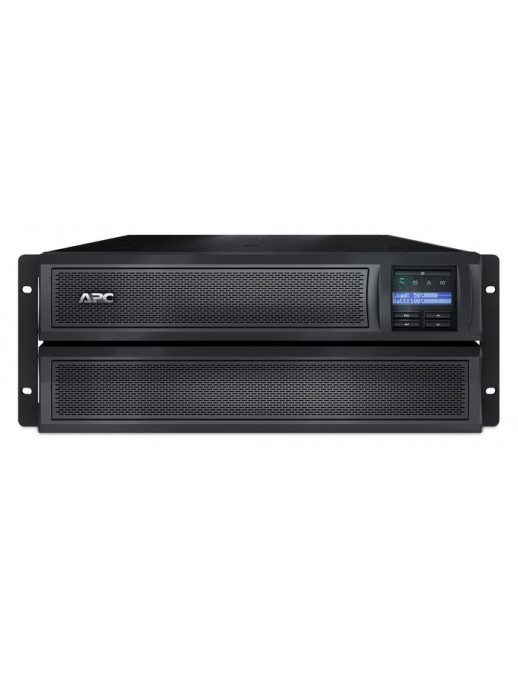

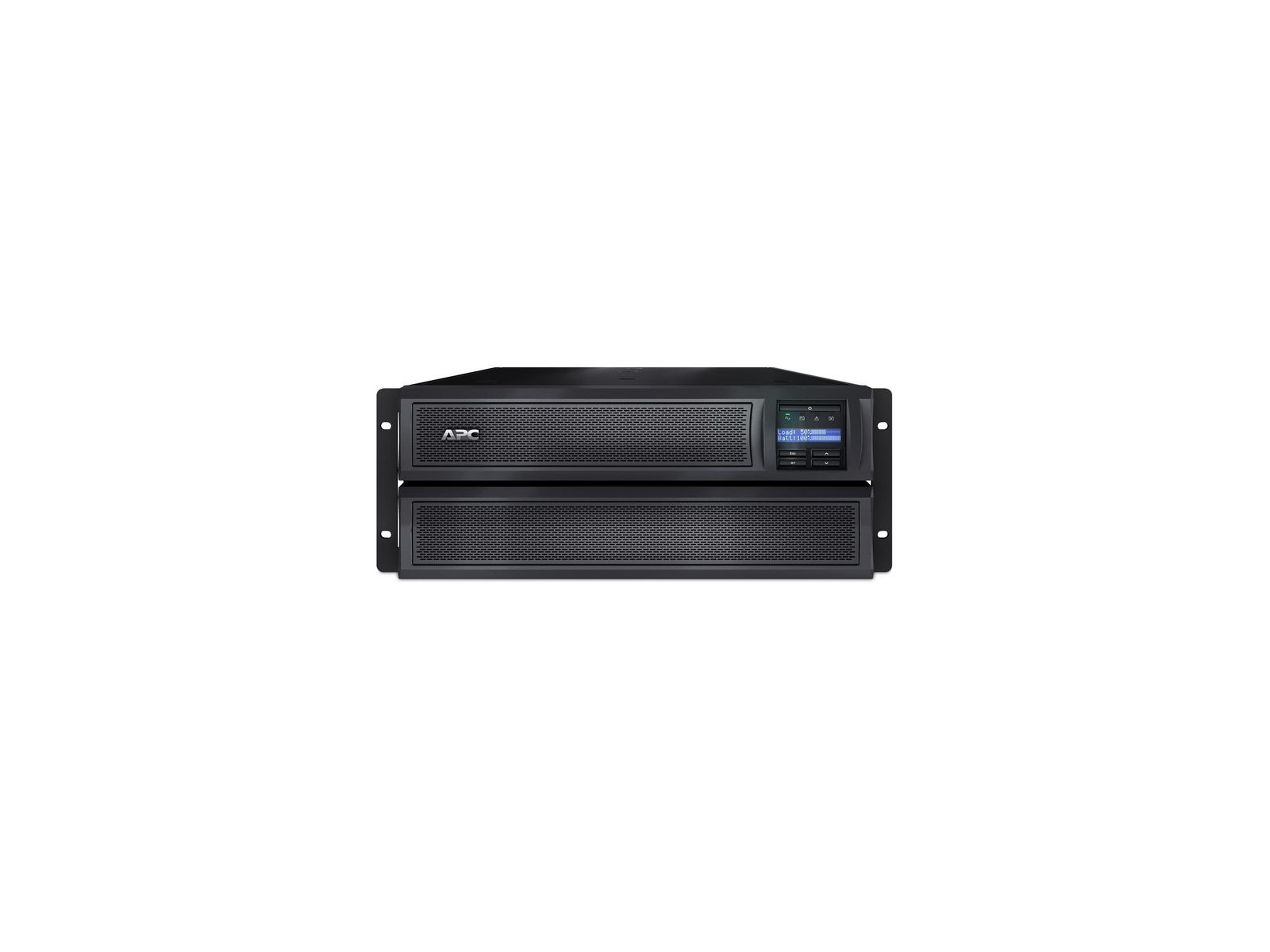

SMX2200HV APC Smart-UPS X 2200VA - 1980 W, 230V, 50/60Hz, USB, 645 J, 4U, 38.64 kg









SMX2200HV APC Smart-UPS X 2200VA - 1980 W 230V 50/60Hz USB 645 J 4U 38.64 kg









Smart-UPS X 2200VA - 1980 W 230 V 50/60 Hz USB 645 J 4U 38,64 kgSmart-UPS 1980 Watt /2200 VA Ingresso 230 V 230 V / Uscita 230 V Porta interfaccia SmartSlot USB Modello con autonomia estesa Altezza rack 4 UInclude: CD con software Staffe di montaggio rack Cavo di segnalazione RS-232 Smart UPS Cavo USB Manuale utente









Battery Automatic battery test Yes Battery capacity 702 VAh Battery life (max) 5 anno/i Battery recharge time 3 Hour Cold start Yes Hot-swap battery Yes Typical backup time at full load 9,8 min Typical backup time at half load 25,3 min Design Cable length 2 m Certification CE CSA EAC EN 50091-1 EN 50091-2 EN/IEC 62040-1 EN/IEC 62040-2 FCC Part 15 CL A IEC 60950 IRAM RCM UL 1778 VDE WEEE REACH Display LCD Display type LCD Form factor Rackmount/Tower LED indicators Battery replacement/Status Product colour Black/Stainless steel Rack capacity 4U RoHS compliance Yes Caratteristiche Audible alarm(s) Yes Auto-restart Yes Automatic Voltage Regulation (AVR) Yes Efficiency 98,1 % Emergency Power Off (EPO) Yes Hold time (max) 10 Millisecond Hold time (min) 2 Millisecond Input frequency 50/60 Hz Input operation voltage (max) 280 V Input operation voltage (min) 140 V Noise level 55 dB Output frequency regulation 50/60 Hz Output operation voltage (max) 240 V Output operation voltage (min) 208 V Output power 1980 Watt Output power capacity 2,2 kVA Surge energy rating 645 J Surge protection Yes UPS topology Line-Interactive Waveform Sine Legal Information EU ECCN Code N/A UNSPSC Code (Icecat) 39121011 US ECCN Code 5A992 Logistics data Harmonized System (HS) code 85078000 Products per pallet 6 pz Operational conditions Non-operating altitude 0 - 15000 m Operating altitude 0 - 3000 m Operating relative humidity (H-H) 0 - 95 % Operating temperature (T-T) 0 - 40 ?C Storage relative humidity (H-H) 0 - 95 % Storage temperature (T-T) -15 - 45 ?C Other Caratteristiche Packaging content Web/SNMP Management Card Package dimensions Depth (package,cm) 63 cm Gross Weight (Package kg) 48 kg Height (package,cm) 33,3 cm Width (package,cm) 59 cm Packaging data Cables included RS-232/USB cable Manual Yes Quick installation guide Yes Rack mount kit Yes Software CD Yes Temperature sensor Yes Ports & interfaces AC outlet types C13 coupler/C19 coupler AC outlets quantity 10 presa(e) AC Number of output IEC jumpers 2 Power plug C20 coupler SmartSlot Yes USB port Yes Product dimensions Net Weight (Product kg) 39 kg Product Depth 48,3 cm Product Height 43,2 cm Product Width 17,8 cm Technical details Compliance certificates RoHS Harmonized System (HS) code 85078000 Sustainability certificates RoHS ^ Brand Name APC * 1 Anno(i) Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria UPS e accessori Sottocategoria UPS
