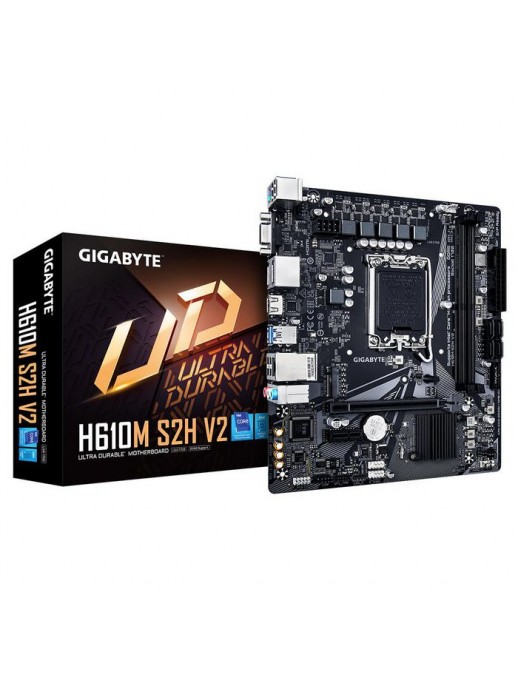

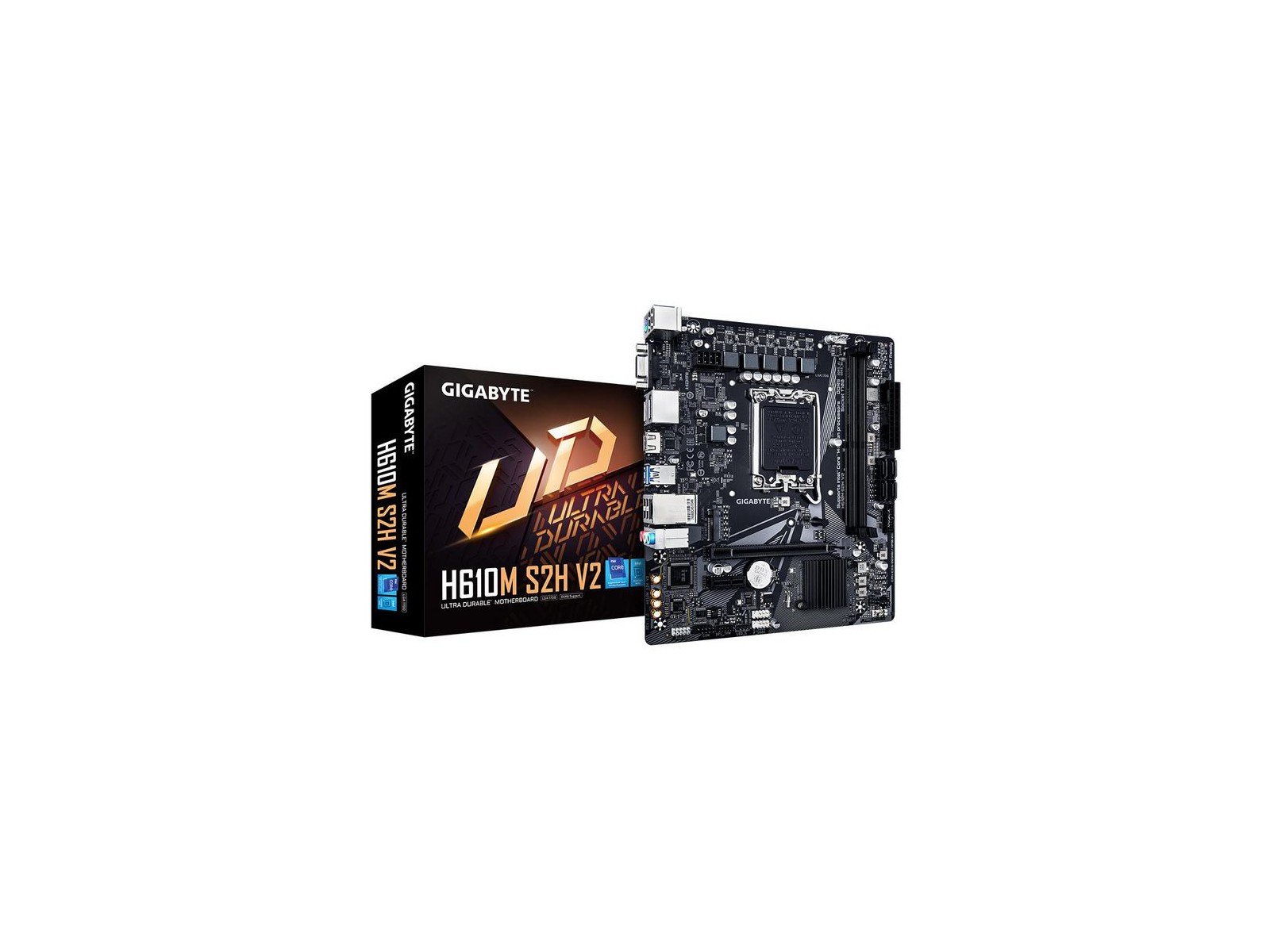

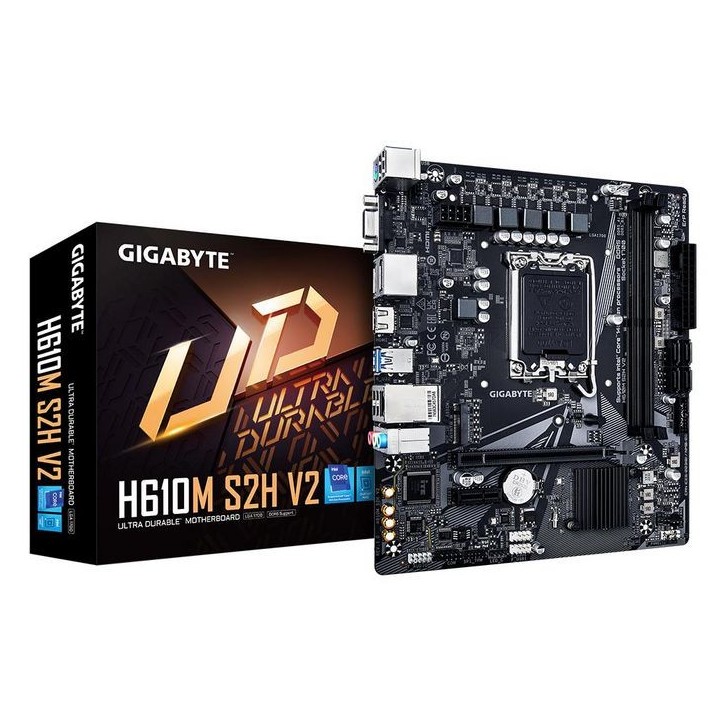

H610M S2H V2 Gigabyte Motherboard - Supports Intel Core 14Th Cpus, 4+1+1 Hybrid Phases Digital Vrm, Up To 5600Mhz Ddr5, 1Xpcie 3









H610M S2H V2 Gigabyte Motherboard - Supports Intel Core 14Th Cpus 4+1+1 Hybrid Phases Digital Vrm Up To 5600Mhz Ddr5 1Xpcie 3.0 M.2 Gbe Lan Usb 3.2 Gen 1









Un'erogazione di potenza pi? pulita ed efficiente alla CPU con migliori prestazioni termiche garantisce stabilit? in caso di frequenze CPU elevate e carichi pesanti. MOSFET a 4 fasi e 1 fase con basso RDS(on). Condensatori solidi per migliorare la risposta ai transienti e ridurre al minimo le oscillazioni. Connettore di alimentazione CPU a 8 pin solidi.









Battery Battery type CR2032 Battery Type UN3091 - Lithium METAL inside equiment Battery weight 3 g Lithium Weight (g) 0,064 g Lithium weight per battery 0,07 g Number of battery cells 1 BIOS ACPI version 5.0 BIOS memory size 128 Mbit BIOS type UEFI AMI Clear CMOS button Yes Clear CMOS jumper Yes Desktop Management Interface (DMI) version 2.7 System Management BIOS (SMBIOS) version 2.7 Expansion slots Number of M.2 (M) slots 1 PCI Express x1 slots 1 PCI Express x16 slots 1 Caratteristiche Audio chip Realtek ALC897 Audio output channels 7.1 canali Component for PC Cooling type Active Motherboard chipset Intel H610 Express Motherboard chipset family Intel Motherboard form factor micro ATX PC health monitoring Fan/LED/Temperature/Voltage/Water cooling Power source type ATX Product colour Black Windows operating systems supported Windows 10 x64/Windows 11 x64 Graphics Graphics card HD Graphics Graphics card family Intel HDCP Yes Maximum resolution 4096 x 2304 Pixels On-board graphics card Yes On-board graphics card model Intel? HD Graphics Internal I/O 12V power connector Yes ATX Power connector (24-pin) Yes CPU fan connector Yes EPS power connector (8-pin) Yes Front panel audio connector Yes Front panel connector Yes Number of chassis fan connectors 2 Number of COM connectors 1 Number of SATA III connectors 4 RGB LED pin header Yes Serial port headers 1 TPM connector Yes USB 2.0 connectors 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 Legal Information UNSPSC Code (Icecat) 43201513 Logistics data Products per shipping (inner) case 1 pz Memory ECC Yes ECC ?ompatibility ECC & Non-ECC Maximum internal memory 96 GB Memory channels Dual-channel Memory slots type DIMM Non-ECC Yes Number of memory slots 2 Supported memory clock speed (max) 5600 MHz Supported memory clock speeds 4400/4800/5200/5600 MHz Supported memory module capacities 12GB/1GB/2GB/32GB/48GB/4GB/8GB Supported memory types DDR5-SDRAM Unbuffered memory Yes Network Ethernet interface type Gigabit Ethernet Ethernet LAN Yes Wi-Fi No Other Caratteristiche Supported DIMM module capacities 16GB/8GB Package dimensions Depth (package,cm) 23,5 cm Gross Weight (Package kg) 1,3 kg Height (package,cm) 5,2 cm Width (package,cm) 26,5 cm Packaging content Batteries included Yes Bundled software LAN bandwidth management software/Norton? Internet Security (OEM version) Cables included SATA Processor Compatible processor series Intel? Celeron?/Intel? Core? i3/Intel? Core? i5/Intel? Core? i7/Intel? Core? i9/Intel? Pentium? Gold Maximum internal memory supported by processor 96 GB Maximum number of SMP processors 1 Processor manufacturer Intel Processor socket LGA 1700 Supported processor sockets LGA 1700 Product dimensions Net Weight (Product kg) 1 kg Product Depth 21,5 cm Product Height 3,5 cm Product Width 23 cm Rear panel I/O ports DisplayPorts quantity 1 DVI-D ports quantity 1 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 Headphone outputs 1 Microphone in Yes PS/2 ports quantity 1 USB 2.0 ports quantity 4 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 VGA (D-Sub) ports quantity 1 Storage controllers Number of HDDs supported 4 Number of storage drives supported 1 Supported storage drive interfaces M.2/SATA Supported storage drive types HDD & SSD Technical details * period 3 anno/i ^ Brand Name Gigabyte * 1 Anno(i) Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria Componenti di sistema Sottocategoria Schede madre
