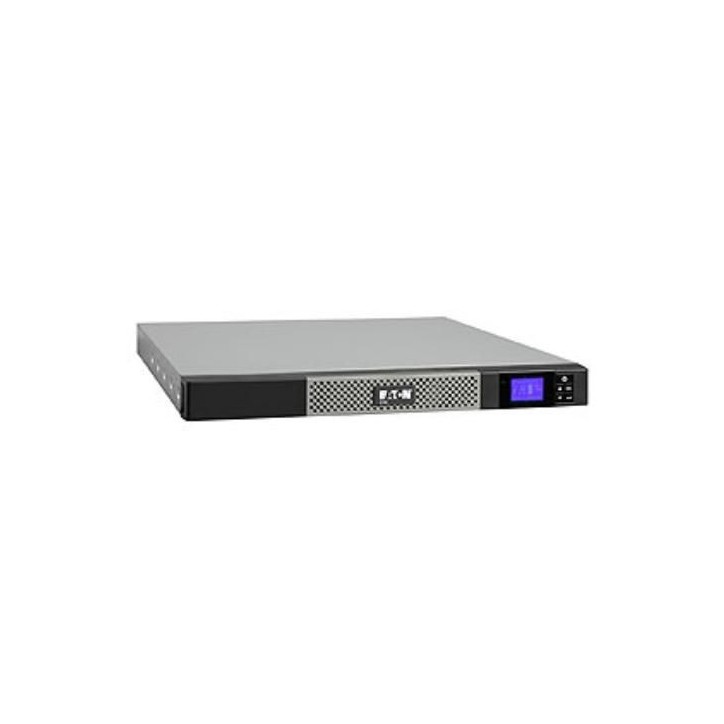

5P650IR Eaton 650VA, 420W, 1 x C14 In, 4 x C13 Out, 1 x USB, 1 x RS232, 1 x 1 mini-Terminal Block, LCD, Rack 1U









5P650IR Eaton 650VA 420W 1 x C14 In 4 x C13 Out 1 x USB 1 x RS232 1 x 1 mini-Terminal Block LCD Rack 1U









650 VA 420 W 1 ingresso C14 4 uscite C13 1 USB 1 RS232 1 mini-morsettiera LCD rack 1UL nuovo Eaton 5P ? la nuova generazione di UPS line-interactive da 650 VA-1550 VA con LCD avanzato e funzione di misurazione dell'energia. 5P ? l'UPS perfetto per proteggere l'IT









Battery Automatic battery test Yes Battery Type UN2800 - Batteries wet non-spillable electric storage Hot-swap battery Yes Typical backup time at full load 2 min Typical backup time at half load 9 min Design Certification IEC/EN 62040-1 UL 1778 IEC/EN 62040 -2 IEC/EN 62040-3 (Performance) CE CB report (TUV) Display LCD Display type LCD Form factor Rackmount Product colour Black Rack capacity 1U Safety IEC/EN 62040-1 UL 1778 Caratteristiche ECO mode No Efficiency 98 % Input frequency 40/70 Hz Input operation voltage (max) 294 V Input operation voltage (min) 160 V Noise level 40 dB Number of input phases 1 Number of output phases 1 Output frequency 50/60 Hz Output operation voltage (max) 240 V Output operation voltage (min) 200 V Output power 420 Watt Output power capacity 0,65 kVA UPS topology Line-Interactive Waveform Pure sine Legal Information EU ECCN Code N/A UNSPSC Code (Icecat) 39121011 US ECCN Code 5A992 Logistics data Harmonized System (HS) code 85078000 Operational conditions Operating temperature (T-T) 0 - 35 ?C Other Caratteristiche Input connection type IEC C14 Mac compatibility No Nominal input voltage 230 V Nominal output voltage 230 V Package dimensions Depth (package,cm) 57,5 cm Gross Weight (Package kg) 10,82 kg Height (package,cm) 15,7 cm Width (package,cm) 45,5 cm Packaging data Bundled software Intelligent Power Software suite Management card included No Rack mount kit Yes Ports & interfaces AC outlet types C13 coupler AC outlets quantity 4 presa(e) AC Power plug C14 coupler RS-232 ports 1 USB 2.0 ports quantity 1 USB port Yes Product dimensions Net Weight (Product kg) 5 kg Product Depth 36,4 cm Product Height 4,32 cm Product Width 43,8 cm Technical details Harmonized System (HS) code 85078000 ^ Brand Name Eaton * 2 Anno(i) Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria UPS e accessori Sottocategoria UPS
