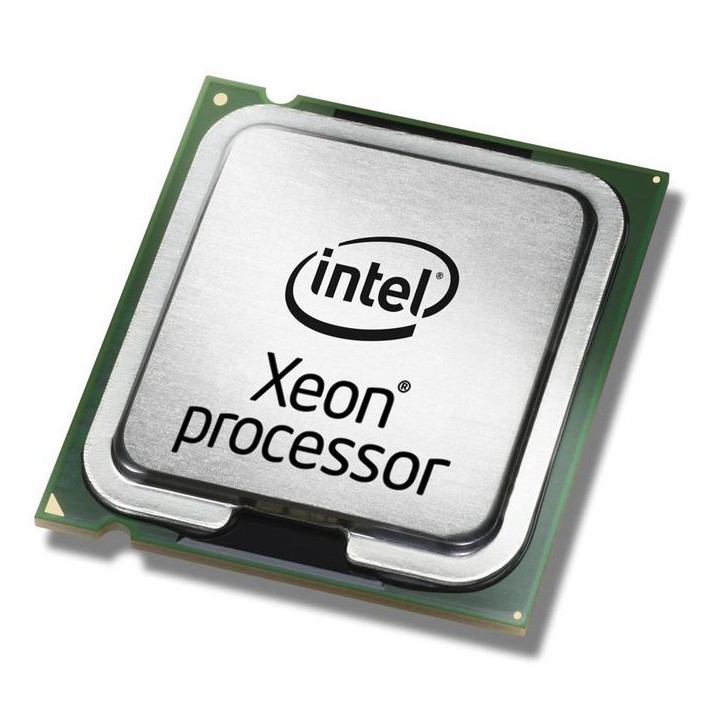

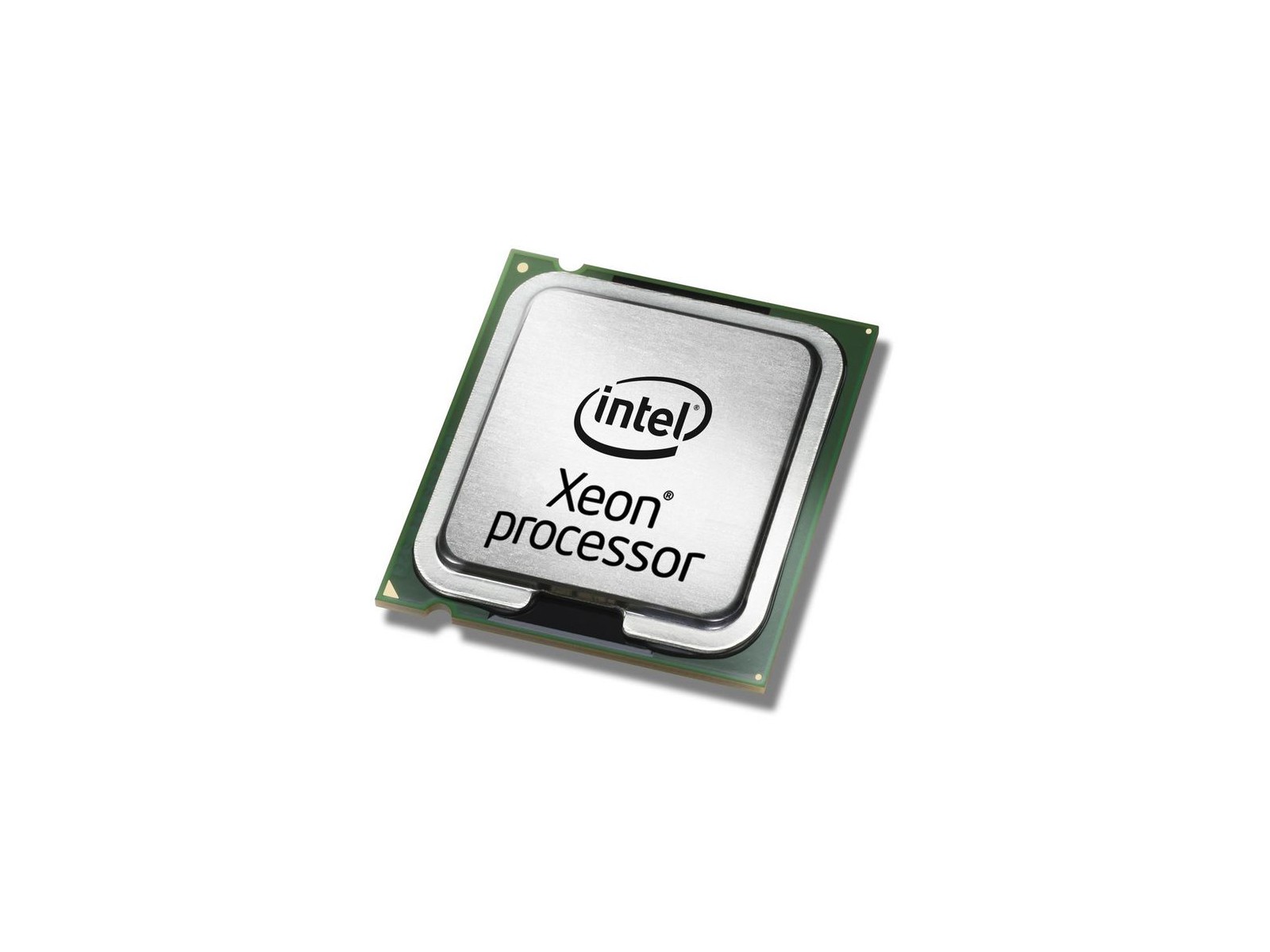

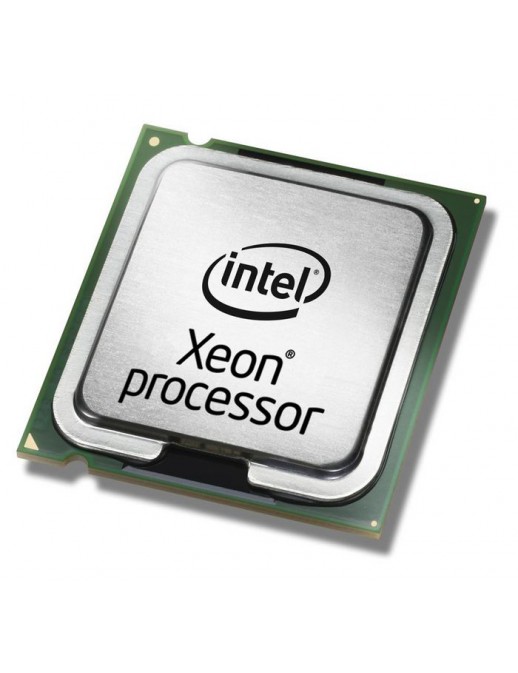

46W2840-RFB Lenovo Intel Xeon Processor E5-2650 v2 8C 2.6GHz 20MB Cache 1866MHz 95W









46W2840-RFB Lenovo Intel Xeon Processor E5-2650 v2 8C 2.6GHz 20MB Cache 1866MHz 95W

















Caratteristiche Embedded options available No Execute Disable Bit Yes Idle States Yes Market segment Server Maximum number of PCI Express lanes 40 PCI Express slots version 3.0 Physical Address Extension (PAE) Yes Scalability 2S Supported instruction sets AVX Thermal Monitoring Technologies Yes Graphics On-board graphics card No Legal Information UNSPSC Code (Icecat) 43201503 Memory ECC Yes Maximum internal memory supported by processor 768 GB Memory channels Quad-channel Memory clock speeds supported by processor 1066/1333/1600/1866/800 MHz Memory types supported by processor DDR3-SDRAM Operational conditions Tcase 75 ?C Other Caratteristiche Compatibility IBM System x3550 M4 Intel? Virtualization Technology (Intel? VT) VT-d/VT-x Package dimensions Gross Weight (Package kg) 0,12 kg Processor Bus type QPI Component for Server/workstation Memory bandwidth supported by processor (max) 59,7 GB/s Number of QPI links 2 Processor base frequency 2,6 GHz Processor boost frequency 3,4 GHz Processor cache 20 MB Processor cache type L3 Processor cores 8 Processor family Intel? Xeon? E5 V2 Family Processor lithography 22 nm Processor model E5-2650V2 Processor operating modes 64-bit Processor socket LGA 2011 (Socket R) Processor threads 16 System bus rate 8 GT/s Thermal Design Power (TDP) 95 Watt VID Voltage Range 0.6 - 1.30 V Processor special Caratteristiche Enhanced Intel SpeedStep Technology Yes Intel Demand Based Switching Yes Intel Flex Memory Access No Intel Trusted Execution Technology Yes Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel? AES New Instructions (Intel? AES-NI) Yes Intel? Hyper Threading Technology (Intel? HT Technology) Yes Intel? Identity Protection Technology (Intel? IPT) No Intel? Secure Key Yes Intel? Turbo Boost Technology Yes Intel? vPro? Platform Eligibility Yes Product dimensions Net Weight (Product kg) 0,1 kg ^ Brand Name Lenovo * 1 Anno(i) Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria Componenti di sistema Sottocategoria CPU
