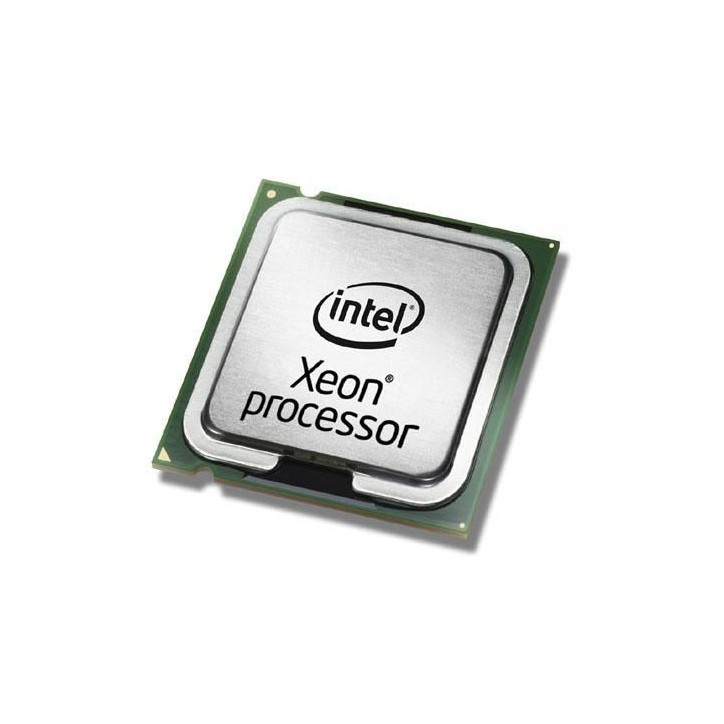

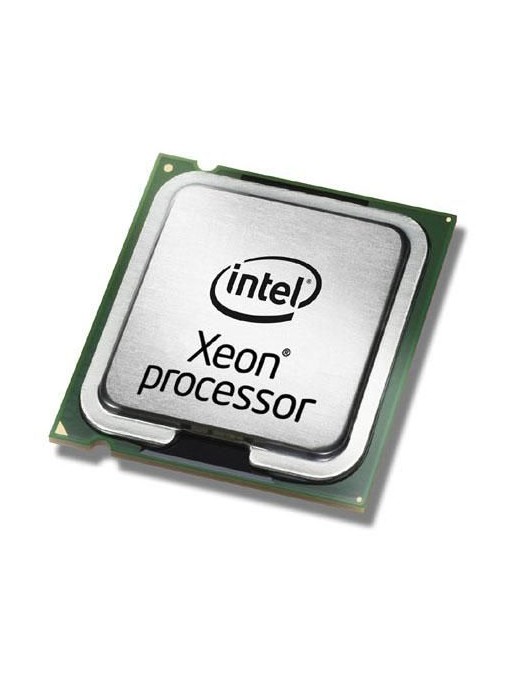

00MW026-RFB Lenovo Intel Xeon Processor E5-2683 v3 14C 2.0GHz 35MB Cache 2133MHz 120W









00MW026-RFB Lenovo Intel Xeon Processor E5-2683 v3 14C 2.0GHz 35MB Cache 2133MHz 120W

















Caratteristiche CPU configuration (max) 2 Embedded options available No Execute Disable Bit Yes Idle States Yes Market segment Server Maximum number of PCI Express lanes 40 PCI Express slots version 3.0 Scalability 2S Supported instruction sets AVX 2.0 Thermal Monitoring Technologies Yes Legal Information UNSPSC Code (Icecat) 43201503 Memory ECC Yes Maximum internal memory supported by processor 768 GB Memory channels Quad-channel Memory clock speeds supported by processor 1600/1866/2133 MHz Memory types supported by processor DDR4-SDRAM Operational conditions Tcase 82,5 ?C Package dimensions Gross Weight (Package kg) 0,12 kg Processor Bus type QPI Component for Server/workstation Memory bandwidth supported by processor (max) 68 GB/s Number of QPI links 2 Processor base frequency 2 GHz Processor boost frequency 3 GHz Processor cache 20 MB Processor cache type L3 Processor codename Haswell Processor cores 14 Processor family Intel Xeon E5 v3 Processor lithography 22 nm Processor model E5-2683V3 Processor operating modes 64-bit Processor socket LGA 2011-v3 Processor threads 28 System bus rate 9,6 GT/s Thermal Design Power (TDP) 120 Watt VID Voltage Range 0.65 - 1.30 V Processor special Caratteristiche Enhanced Intel SpeedStep Technology Yes Intel Demand Based Switching Yes Intel Flex Memory Access No Intel Trusted Execution Technology Yes Intel TSX-NI No Intel VT-x with Extended Page Tables (EPT) Yes Intel? AES New Instructions (Intel? AES-NI) Yes Intel? Hyper Threading Technology (Intel? HT Technology) Yes Intel? Identity Protection Technology (Intel? IPT) No Intel? OS Guard Yes Intel? Secure Key Yes Intel? Smart Cache Yes Intel? Turbo Boost Technology 2.0 Intel? vPro? Platform Eligibility Yes Product dimensions Net Weight (Product kg) 0,1 kg ^ Brand Name Lenovo * 1 Anno(i) Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria Componenti di sistema Sottocategoria CPU
