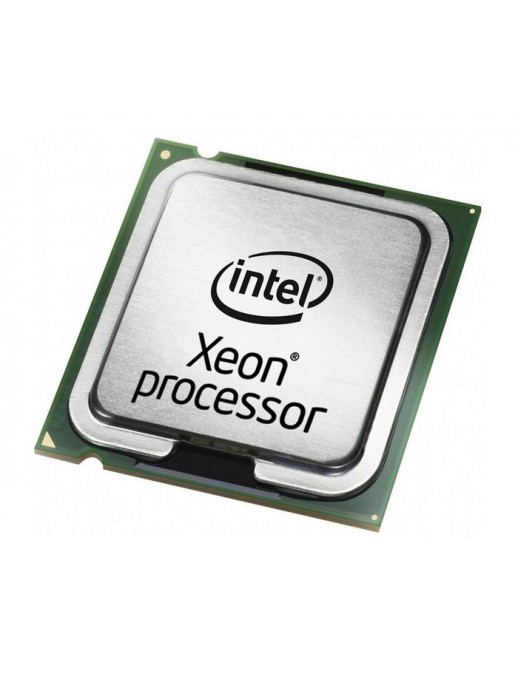

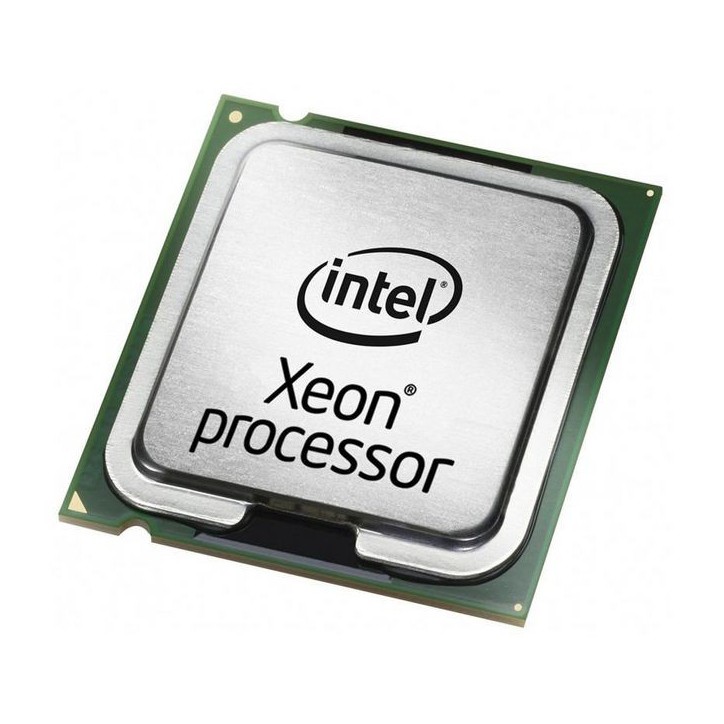

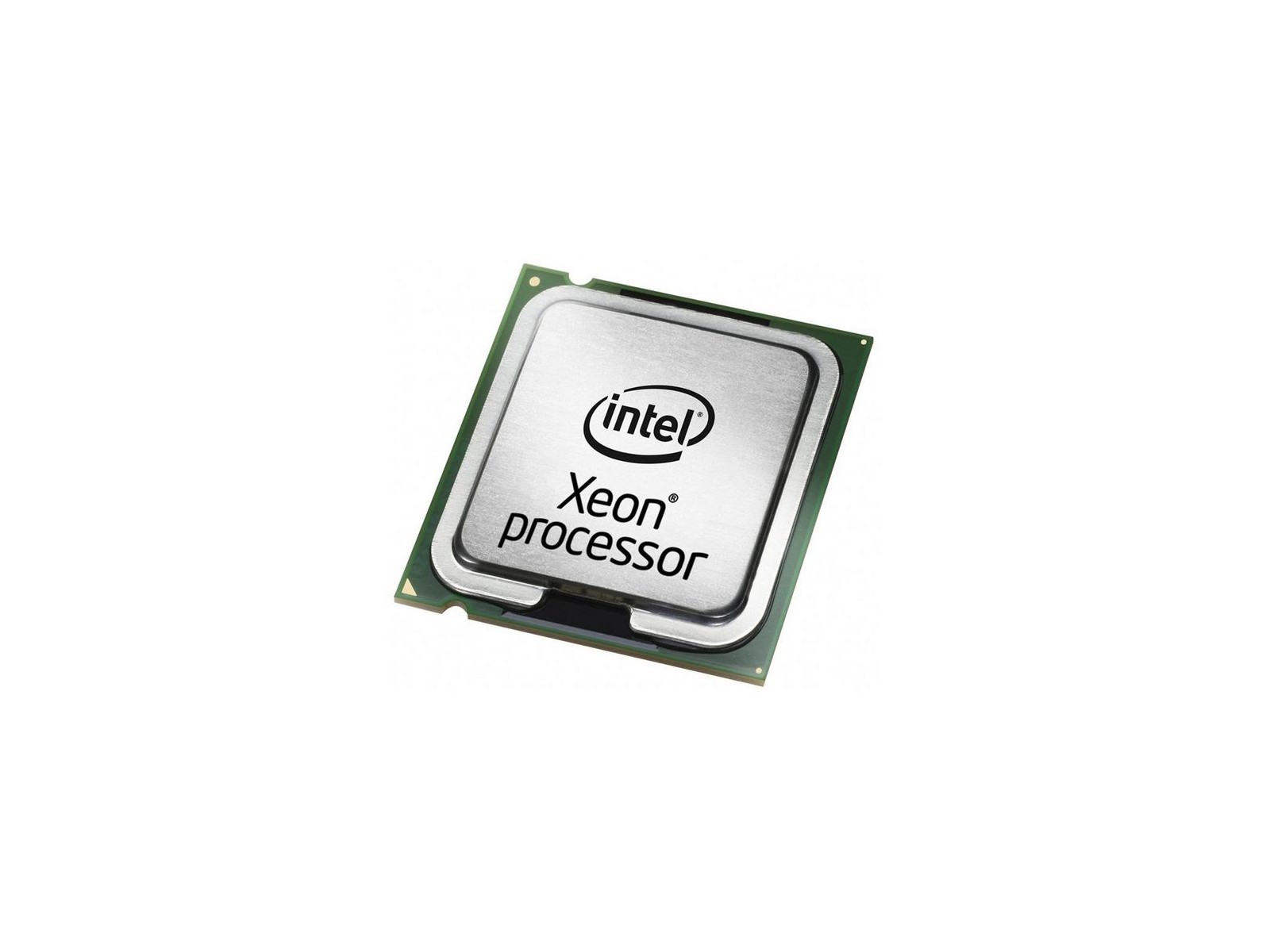

00JX058-RFB Lenovo Intel Xeon Processor E5-2640 v3 8C 2.6GHz 20MB Cache 1866MHz 90W









00JX058-RFB Lenovo Intel Xeon Processor E5-2640 v3 8C 2.6GHz 20MB Cache 1866MHz 90W

















Caratteristiche Embedded options available Yes Execute Disable Bit Yes Idle States Yes Market segment Server Maximum number of PCI Express lanes 40 PCI Express configurations 1x16/1x4/1x8 PCI Express slots version 3.0 Scalability 2S Supported instruction sets AVX 2.0 Thermal Monitoring Technologies Yes Graphics On-board graphics card No Legal Information UNSPSC Code (Icecat) 43201503 Memory ECC Yes Memory channels Quad-channel Memory clock speeds supported by processor 1600/1866 MHz Memory types supported by processor DDR4-SDRAM Operational conditions Tcase 74,3 ?C Other Caratteristiche Intel? Virtualization Technology (Intel? VT) VT-d/VT-x Package dimensions Gross Weight (Package kg) 0,12 kg Processor Box Yes Bus type QPI Component for Server/workstation Memory bandwidth supported by processor (max) 59 GB/s Number of QPI links 2 Processor base frequency 2,6 GHz Processor boost frequency 3,4 GHz Processor cache 20 MB Processor cache type L3 Processor cores 8 Processor family Intel Xeon E5 v3 Processor lithography 130 nm Processor model E5-2640V3 Processor operating modes 64-bit Processor socket LGA 2011-v3 Processor threads 16 Stepping R2 System bus rate 8 GT/s Thermal Design Power (TDP) 90 Watt VID Voltage Range 0.65 - 1.3 V Processor special Caratteristiche Enhanced Intel SpeedStep Technology Yes Intel Demand Based Switching Yes Intel Flex Memory Access No Intel Trusted Execution Technology Yes Intel TSX-NI No Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel? AES New Instructions (Intel? AES-NI) Yes Intel? Hyper Threading Technology (Intel? HT Technology) Yes Intel? Identity Protection Technology (Intel? IPT) No Intel? OS Guard Yes Intel? Secure Key Yes Intel? Smart Cache Yes Intel? Turbo Boost Technology 2.0 Intel? vPro? Platform Eligibility Yes Product dimensions Net Weight (Product kg) 0,1 kg ^ Brand Name Lenovo * 1 Anno(i) Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria Componenti di sistema Sottocategoria CPU
